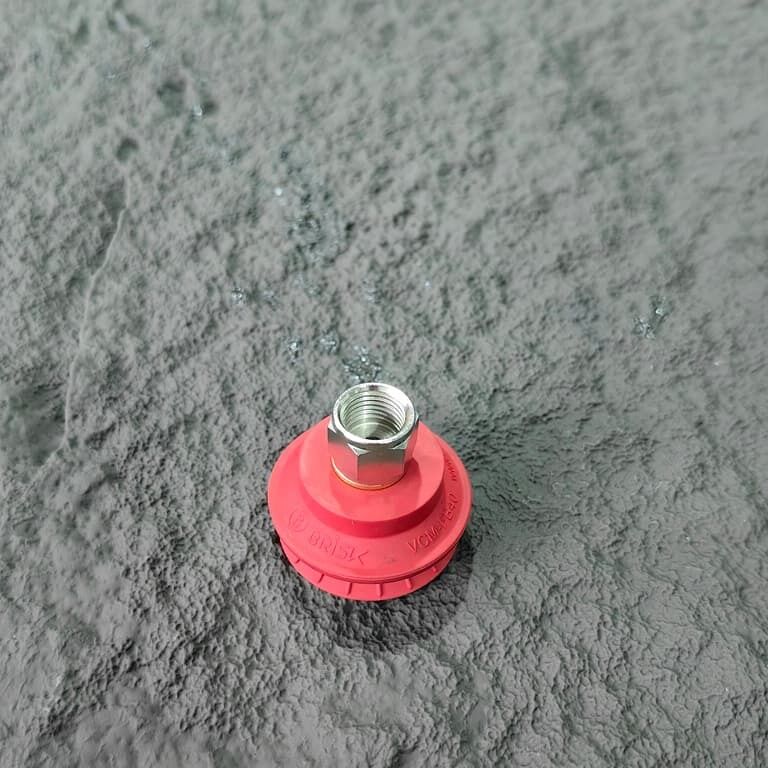

Powerful Long Reach Vacuum Gripper Heavy Load Capacity For Industrial Automation

Powerful Long-Reach Vacuum Gripper Heavy Load Capacity for Industrial Automation



vacuum foam gripper
heavy load palletizing
non-marking suction cup
industrial manipulator
pneumatic suction system
sponge cup for cartons
automated handling
vacuum gripper for bricks
custom vacuum pad
heavy duty gripper


 Specification

Working Principle

Vacuum grippers function by connecting one or more suction cups to a vacuum generator or pump. When the vacuum is activated, air is evacuated from the space between the suction cup and the workpiece surface, creating a pressure differential that pulls the object toward the cup and holds it securely.

There are two main types of vacuum generation methods:

1. Venturi-based vacuum generators – Use compressed air to create suction through the Venturi effect (commonly used for lightweight, fast operations).

2. Vacuum pumps – Electrically driven pumps that provide continuous vacuum flow for heavy-duty or multi-cup systems.

The grip is released by venting air into the suction cup, equalizing pressure and allowing the part to be dropped or placed precisely.

Key Features

1. Non-damaging grip – Ideal for delicate or polished materials like sheet metal, glass, or coated parts.

2. Fast and flexible operation – Suitable for high-speed automation and variable object shapes.

3. Lightweight construction – Minimizes load on robotic arms and actuators.

4. Easy maintenance and integration – Simple structure with few moving parts.

5. Customizable suction configurations – Can include multiple cups and adjustable mounts.

Applications

• Sheet metal handling – Transferring steel or aluminum sheets between press stages.

• Automotive manufacturing – Moving body panels, doors, and roof components.

• Electronics assembly – Handling glass panels, circuit boards, or casings.

• Packaging and logistics – Picking boxes, bags, and flat packages.

• Aerospace and composites – Lifting lightweight panels and molded structures.

Advantages

• Provides clean, non-contact handling with no surface damage.

• Allows fast pick-and-place operations, improving productivity.

• Handles varied materials and surface geometries.

• Offers simple design and low maintenance costs.

• Easily integrates with robotic and automated systems for flexible manufacturing.
