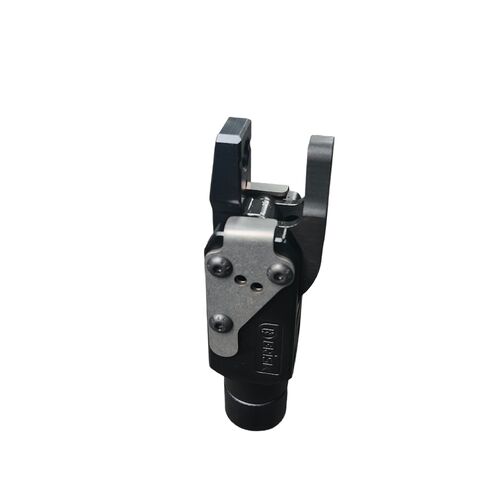

What Information Is Needed to Customize a Sheet Metal Gripper for Automotive Stamped Parts? Customizing a sheet metal gripper for automotive stamped parts is only as good as the information provided up front. A gripper engineered from incomplete data can mark A-class surfaces, collide with the die, slip at transfer speed or need expensive rework during commissioning. This guide explains the complete information package a qualified supplier needs: exact part geometry from 2D/3D CAD data, material grade and thickness from 0.6-0.8 mm outer panels to 2.5-4 mm structural steel, part mass, press type and tonnage, strokes per minute, robot or transfer automation data, preferred clamping points and clearance zones, sensor requirements and changeover targets, plus quality and documentation standards such as IATF 16949 and VDA 6.3. Providing this data early lets engineers calculate clamping force, choose PU pads or carbide contact tips, position vacuum cups and sensors, avoid die interference and deliver a customized sheet metal gripper that performs reliably from the first cycle. What Does Customizing a Sheet Metal Gripper Involve? A custom sheet metal gripper is an end-of-arm tooling assembly engineered for one part number or a defined family of parts, not a catalog product with generic jaws. The engineer starts from the part's 3D contour and designs the jaw geometry, contact tips, PU pads, vacuum cups, cylinders, sensors and mounting interface around it, so that the panel is gripped at the right points, with the right force, without touching any surface that must stay flawless. Standard design parameters in automotive stamping give the work its precision. Clamping force is calculated from part mass, gravity and the peak acceleration of the transfer motion, multiplied by a safety factor of two to three. Contact points sit at least 3-5 mm from trimmed edges and clear of draw beads and A-class surfaces. Vacuum cups of 30-150 mm diameter, spring-loaded to follow panel contours, operate at -60 to -80 kPa, and every gripper carries part-presence and, where blanks are handled, double-blank detection sensors. Customization also extends to the interfaces nobody sees during production. The gripper must bolt to a specific robot flange or transfer bar, route air and electrical lines without snagging, clear the die when it opens and closes, and leave 20-50 mm of safety clearance around the tooling during motion. On lines that change over between several panels, the design adds a quick-change interface, standardized sensor connectors and coded spare wear-part kits, so the whole end-of-arm tooling can be swapped inside a 15-minute SMED window. Finally, customization means documentation. Because automotive suppliers are audited against IATF 16949 and VDA 6.3, the gripper package should include drawings, material data and test results that the customer can file with the press line documentation, and wear parts should carry defined service lives for the maintenance plan. In practice the difference between a custom gripper and a modified standard one shows up in cycle stability: the custom design distributes load across supports that match the panel's stiffness, keeps sensors out of the blank path, and places the center of gravity so robot accelerations do not twist the part. Why Complete Input Data Determines Gripper Performance, Cost and Lead Time Gripper design decisions cascade from the data sheet. If the quoted material thickness is 0.8 mm but the real blank is a 2.5 mm DP780 structural part, the contact tips, pad area and cylinder size will all be wrong, and the gripper will either mark the part or lose it mid-transfer. If the die-open envelope or robot path is missing, the engineer may position a sensor or vacuum cup inside the interference zone, producing a crash on the first try-out. Incomplete information almost always converts into engineering changes, rework and late commissioning. The commercial stakes are high because the gripper sits inside the press cycle. On a transfer line running 600-2500 tonne presses at up to 20-30 SPM for small structural parts, a gripper that drops a B-pillar or floor panel stops the whole press train, and the time needed to clear the die area is measured in hours, not minutes. On outer-panel lines producing doors, fenders and hoods at 8-18 SPM, a gripper that marks an A-class surface creates scrap that is only discovered after forming, costing material, press time and re-inspection. Poor input data produces exactly these failures because the gripper is engineered around assumptions instead of facts. Supplying a complete information package up front delivers four measurable benefits: Part protection and process reliability. Correct clamping points, pad materials and support geometry prevent surface marks, edge damage and gripper slippage, keeping positioning accuracy stable through millions of cycles. Faster project execution and lower total cost. With complete data the supplier designs right the first time, avoids prototype iterations, and quotes a firm price and lead time instead of a list of assumptions and change orders. Safe integration with dies and automation. Die-open envelopes, robot paths and clearance zones of 20-50 mm are checked in the design phase, so the gripper cannot collide with tooling, sensors or the transfer system during try-out or production. Clean compliance with automotive quality systems. Drawings, material certificates and test records delivered with the gripper support PPAP submissions and satisfy IATF 16949 and VDA 6.3 process audit requirements without last-minute paperwork. There is also a commercial argument. Suppliers price risk into quotations: when drawings, line data and quality requirements are vague, the quote carries contingencies for redesign, extra sensors and re-testing. Buyers who provide a complete information package receive more competitive pricing, shorter delivery times and fewer surprises during commissioning, and they protect the project schedule of the press line itself, where every day of delay affects downstream body-in-white and assembly programs. How to Prepare the Information Package for a Custom Gripper Quote You do not need to be a gripper specialist to prepare the package; you only need to collect data your plant already has. Work through the five checklists below and send the result to your supplier together with the part drawings. The more complete the input, the more precise the quotation and the faster the delivery. Provide Part Drawings, Material Data and Mass Send the part geometry in STEP or IGES format, or a dimensioned 2D drawing when 3D data is restricted, and state the material grade — DC01, DC04, SPCC, HSLA, DP600-DP980, galvanized or 5xxx/6xxx aluminum — with the nominal thickness from 0.6 to 4 mm and the part mass. Mark the A-class surfaces, trimmed edges, holes, flanges and draw beads on the drawing, and note whether the surface is oily, dry, coated or painted. If CAD export is impossible, a physical sample with measured key dimensions works. Describe the Press Line and the Automation Tell the supplier which press the part runs on: a tandem line, a transfer press or a large outer-panel line, with the press tonnage in the typical 600-2500 tonne range and the actual line speed in SPM. Identify the automation that carries the gripper — a six-axis robot, a crossbar transfer, a destacker or a seventh axis — including the robot make, model and payload, and the flange pattern if the gripper mounts directly. State the part orientation at the pick-up point and at the drop-off point in the die, and the time available for the complete transfer motion. Define Clamping Points, Support Areas and Clearance Zones The most valuable input is a marked drawing showing where the gripper may and may not touch. Indicate preferred clamping zones on rigid, hidden areas at least 3-5 mm from trimmed edges, and mark every forbidden zone: A-class visible surfaces, draw beads, hemming flanges, functional holes and sensor targets. For large, flexible panels such as door outers and fenders, note the areas that need additional supports to prevent sag and flutter at line speed. Finally, provide the die-open envelope and the available space around the press so the engineer can verify 20-50 mm of safety clearance for the gripper path and sensor brackets. Specify Gripping Media, Sensors and Utilities State whether the part is ferromagnetic so magnetic gripping is an option, or whether mechanical clamping, PU-pad contact or vacuum cups are preferred; for vacuum, note whether the part surface is oily and whether holes would leak. Specify the sensors you expect: part-presence detection, double-blank detection for blanks with the nominal sheet thickness, and any anti-collision or proximity devices. Confirm the available utilities: shop air at about 6 bar and vacuum at -60 to -80 kPa. Mention ambient conditions such as oil mist, temperature and cleanliness, which influence pad material and sensor selection. State Changeover, Quality and Documentation Requirements Tell the supplier how many variants the gripper must serve and how the line changes over, so the design can include a zero-point quick-change plate and meet your SMED target, typically a complete gripper swap in under 15 minutes. State the quality framework — IATF 16949, VDA 6.3 or customer-specific PPAP requirements — and the documentation you expect with delivery: drawings, material certificates, dimensional inspection reports and function test records. Finally, list the wear parts you want to stock, such as spare PU pads and contact tips, so the supplier can define service lives and part numbers. Frequently Asked Questions What part data do you need to quote a custom sheet metal gripper? We need the part 3D model in STEP or IGES, or a dimensioned 2D drawing, plus material grade, thickness and mass. Indicate A-class and hidden surfaces, trimmed edges, holes, flanges and draw beads, and specify the pickup orientation. If CAD is unavailable, a physical sample with measured key dimensions works. Why are material grade and thickness essential for gripper design? Grade and thickness set the blank's stiffness, weight and surface sensitivity. A 0.6-0.8 mm outer panel needs large PU contact areas and supports to avoid oil-canning and marks, while a 2.5-4 mm DP600-DP980 structural part needs rigid carbide or steel tips and higher clamping force. Zinc or Al-Si coatings affect pad material and wear life. What press line and automation data should we provide? Tell us the press type, tandem or transfer, its tonnage from 600 to 2500 tonnes, and the line speed in strokes per minute, 8-18 for large outer panels and 20-30 for small parts. Describe the automation: robot make, model and payload, flange pattern, transfer bar or seventh axis, destacker design and part orientation at pickup and drop-off. How are clamping points selected on a stamped part? Clamping points are placed on rigid, hidden areas of the part, at least 3-5 mm from any trimmed edge to avoid edge damage, and never on A-class visible surfaces, draw beads or hemming flanges. Large thin panels receive additional supports to prevent sag during high-speed transfer. Layouts are approved by your process engineers before manufacturing. Why do you need our robot model and flange details? The gripper must interface mechanically and electrically with your automation. Robot make, model and payload confirm the flange pattern, reach and allowable tooling mass, while transfer bar or seventh-axis details define the mounting geometry and cable routing. With this information the engineer selects the correct coupler, quick-change plate and sensor wiring, avoiding mismatches during installation. What quality standards apply to customized sheet metal grippers? Custom grippers for automotive stamping are designed and manufactured under quality systems aligned with IATF 16949 and VDA 6.3, using PPAP-style documentation when required. Suppliers should provide material certificates for wear parts, dimensional inspection reports and function test results. Ask your supplier which standards they follow and what documentation is included with each delivery. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What part data do you need to quote a custom sheet metal gripper?", "acceptedAnswer": { "@type": "Answer", "text": "We need the part 3D model in STEP or IGES, or a dimensioned 2D drawing, plus material grade, thickness and mass. Indicate A-class and hidden surfaces, trimmed edges, holes, flanges and draw beads, and specify the pickup orientation. If CAD is unavailable, a physical sample with measured key dimensions works." } }, { "@type": "Question", "name": "Why are material grade and thickness essential for gripper design?", "acceptedAnswer": { "@type": "Answer", "text": "Grade and thickness set the blank's stiffness, weight and surface sensitivity. A 0.6-0.8 mm outer panel needs large PU contact areas and supports to avoid oil-canning and marks, while a 2.5-4 mm DP600-DP980 structural part needs rigid carbide or steel tips and higher clamping force. Zinc or Al-Si coatings affect pad material and wear life." } }, { "@type": "Question", "name": "What press line and automation data should we provide?", "acceptedAnswer": { "@type": "Answer", "text": "Tell us the press type, tandem or transfer, its tonnage from 600 to 2500 tonnes, and the line speed in strokes per minute, 8-18 for large outer panels and 20-30 for small parts. Describe the automation: robot make, model and payload, flange pattern, transfer bar or seventh axis, destacker design and part orientation at pickup and drop-off." } }, { "@type": "Question", "name": "How are clamping points selected on a stamped part?", "acceptedAnswer": { "@type": "Answer", "text": "Clamping points are placed on rigid, hidden areas of the part, at least 3-5 mm from any trimmed edge to avoid edge damage, and never on A-class visible surfaces, draw beads or hemming flanges. Large thin panels receive additional supports to prevent sag during high-speed transfer. Layouts are approved by your process engineers before manufacturing." } }, { "@type": "Question", "name": "Why do you need our robot model and flange details?", "acceptedAnswer": { "@type": "Answer", "text": "The gripper must interface mechanically and electrically with your automation. Robot make, model and payload confirm the flange pattern, reach and allowable tooling mass, while transfer bar or seventh-axis details define the mounting geometry and cable routing. With this information the engineer selects the correct coupler, quick-change plate and sensor wiring, avoiding mismatches during installation." } }, { "@type": "Question", "name": "What quality standards apply to customized sheet metal grippers?", "acceptedAnswer": { "@type": "Answer", "text": "Custom grippers for automotive stamping are designed and manufactured under quality systems aligned with IATF 16949 and VDA 6.3, using PPAP-style documentation when required. Suppliers should provide material certificates for wear parts, dimensional inspection reports and function test results. Ask your supplier which standards they follow and what documentation is included with each delivery." } } ] } Conclusion A custom sheet metal gripper is engineered, not guessed, and the quality of the engineering depends on the information package you provide. Part drawings with material grade and thickness, press line and automation data, approved clamping points, sensor and utility requirements, and your changeover and quality standards allow the supplier to calculate clamping force, select contact materials, position vacuum cups and verify clearances before steel is cut. The result is a gripper that protects A-class surfaces, runs at line speed from the first cycle and documents itself for IATF 16949 and VDA 6.3 audits. Our engineering team is ready to review your part drawings and line data and propose a customized sheet metal gripper solution. Contact us to start the technical discussion.

How to Reduce Sheet Metal Gripper Wear and Downtime in Automotive Stamping Production A sheet metal gripper is arguably the hardest-working component on an automotive stamping press line, yet wear-related failures remain one of the most common causes of unplanned downtime. Every cycle, gripper jaws, polyurethane pads, vacuum cups and tungsten carbide pins strike sharp blank edges, zinc-coated surfaces and die-trimmed panels at full line speed. As wear accumulates, clamping force drops, parts slip, and positioning accuracy drifts, leading to die interference, surface marks and scrapped panels. This guide explains how contact-point wear develops on sheet metal grippers, why it disrupts tandem and transfer press lines, and how to reduce it through wear-resistant materials, modular quick-change wear parts, condition monitoring and disciplined preventive maintenance. Realistic reference data on wear life, inspection intervals and replacement thresholds help maintenance and automation engineers extend gripper service life, stabilize cycle times and cut spare-part and rework costs while keeping outer-panel lines running at 8-18 SPM and smaller-part lines at 20-30 SPM. What Causes Sheet Metal Gripper Wear in Automotive Stamping Lines? On a modern stamping line, a sheet metal gripper transfers blanks and formed panels between the destacker, the die stations and the unloading conveyor up to 20,000 times per shift. Wear is the progressive loss of material from every surface that touches the workpiece, and in press automation it concentrates on a small number of replaceable components: jaw contact tips, polyurethane (PU) pads, tungsten carbide pins, vacuum cups and locating pins. Four mechanisms dominate. Abrasive wear occurs when hard particles — scale, die dust or the sharp trimmed edge of a 0.6-0.8 mm outer panel — plough across a softer contact surface. Adhesive wear, or galling, develops when microscopic welds form between the tip and the blank and then tear apart, pulling material away. Impact and fatigue loading add mechanical stress: a 2.5-4 mm DP600-DP980 structural blank can weigh several kilograms and reach the gripper with acceleration loads several times gravity. Chemical and coating effects matter too: zinc on galvanized steel and Al-Si on press-hardened steel shed hard particles that act like lapping compound between pad and panel. Wear life is a function of material pairing, surface condition and duty cycle. Hardened tool-steel tips on mild DC01/DC04 or SPCC blanks typically last several hundred thousand cycles; PU pads that protect visible outer surfaces are normally changed after 200,000-500,000 cycles; and tungsten carbide pins gripping AHSS structural parts can exceed one million cycles before measurable wear appears. Friction explains why material choice matters: the steel-on-steel friction coefficient is only 0.15-0.2, whereas PU or NBR rubber against steel reaches 0.5-0.8. A worn or oil-contaminated pad therefore lowers effective clamping force even when cylinder pressure is unchanged, allowing the part to shift a few tenths of a millimeter — enough to cause die interference or reject an A-class panel. Wear rarely announces itself. Early indicators include a gradual increase in part-position scatter, faint witness marks on outer panels, audible slip at the transfer point and vacuum-cup failures that follow pad deterioration. Because most plants cannot see inside a closed gripper during production, wear control depends on measurable inspection routines and component-level life data rather than operator intuition. Why Reducing Gripper Wear Matters for Press Line Productivity and Part Quality Unplanned stops are the most expensive events on a stamping line. When a sheet metal gripper loses clamping force mid-transfer, a door outer or fender can slip, tilt or drop inside the press, forcing operators to stop the line, clear the die space and inspect tooling before restarting. On an outer-panel line running 8-18 SPM, every lost minute directly reduces output of hoods, deck lids and body sides; on transfer and tandem lines producing B-pillars, floors and cross members at 20-30 SPM, the same failure interrupts the whole press train and the downstream welding shop. Worn grippers also attack part quality and tooling in ways that are easy to underestimate. Fading clamping force allows the blank to shift between pick-up and die placement, so features land out of position; the die then corrects the error by cutting or forming in the wrong place, which produces dimensional deviation, burrs or splits. Scratched pads leave witness marks on A-class surfaces that no downstream polish can remove from a finished door panel, and a dropped part between dies can damage expensive tooling surfaces and stop production for hours. A structured approach to gripper wear management delivers four measurable advantages: Fewer unplanned stops and stable cycle times. Condition-based replacement of contact tips, PU pads and vacuum cups eliminates most wear-related faults, keeping destackers, transfer beams and press strokes synchronized shift after shift. Protection of A-class surfaces and dimensional accuracy. Correctly specified PU pads and radiused contact tips prevent scratches, galling marks and edge indents on outer panels, while repeatable clamping keeps blank location stable inside the die, protecting flanges and hemming edges. Longer end-of-arm tooling life and lower spare-part spend. Modular wear parts made from wear-resistant materials extend the service life of gripper bodies, cylinders and sensors, so the whole end-of-arm tooling survives across die sets and model changes instead of being rebuilt every season. Faster changeover and more predictable maintenance. Quick-change tips, indexed wear inserts and color-coded pad kits support SMED routines that bring die and gripper changeover below 15 minutes, while documented wear data lets planners schedule replacements during planned stops instead of emergencies. Process audits under IATF 16949 and VDA 6.3 increasingly ask how wear on handling equipment is monitored and documented; plants without a defined gripper-maintenance routine risk findings even when their presses are in perfect condition. Because gripper wear develops gradually, it is one of the few downtime drivers that can be predicted, scheduled and engineered out of the process. How to Reduce Sheet Metal Gripper Wear and Downtime in Five Practical Steps Wear cannot be eliminated, but it can be managed so that components are replaced during planned stops rather than after a line-stopping failure. The five steps below combine design choices, process data and maintenance discipline, and they apply equally to new end-of-arm tooling and to grippers already running on existing lines. 1. Match Contact Materials to the Blank and the Surface Class Material pairing decides wear rate before the gripper ever cycles. For A-class outer panels of 0.6-0.8 mm steel, use PU pads of about 90 Shore A or NBR rubber, which grip with a friction coefficient of 0.5-0.8 without marking the surface. For structural parts in 2.5-4 mm HSLA, DP600-DP980 or press-hardened steel, specify tungsten carbide pins or hardened tool-steel inserts that resist abrasion from trimmed edges. Avoid steel-on-steel contact on visible surfaces, and confirm pad compatibility with forming oil and zinc dust before series production. 2. Specify Modular, Quick-Change Wear Parts Design the gripper so every wear component can be replaced without removing the end-of-arm tooling from the robot or transfer bar. One-screw or tool-free tips, indexed two- or four-position turret tips and pre-assembled pad cartridges allow a worn tip to be changed in two to five minutes at the line. Keep color-coded spare kits at the press for each part number. For part families, add a zero-point quick-change interface so the complete gripper swaps in under 15 minutes as part of SMED, with wear parts renewed off-line between runs. 3. Set Clamping Force from Real Process Loads Correct force keeps the part from slipping without crushing the pad. Size the gripper using the worst point of the trajectory: clamping force equals part mass multiplied by gravity plus peak acceleration, times a safety factor of two to three. Transfer automation on small-part lines at 20-30 SPM can impose accelerations of 2-4 g, so a 3 kg structural blank can present an effective load above 10 kg. Fit a regulator and gauge per gripper, verify the setting during commissioning and record it in the maintenance file. Over-clamping is as harmful as under-clamping: it squeezes PU pads flat, accelerates tip wear and leaves permanent indent marks on soft outer panels. 4. Monitor Wear with Structured Inspection and Sensors Because wear is invisible inside a closed gripper, build detection into the routine. Include a shift-start visual check of pads and tips for glazing, cracks or embedded particles, and a weekly measurement of pad height and tip profile with a caliper. Replace PU pads when remaining thickness is reduced by about 1-1.5 mm or when the surface cracks; replace vacuum cups when the lip is worn or hardened, typically every three to six months on continuous outer-panel duty. Part-presence sensors and double-blank detection catch mis-picks before the blank enters the die, and logging every replacement in the CMMS lets you tune intervals from your own data. 5. Run a Disciplined Preventive Maintenance Schedule Formalize the routine so it survives shift changes. A baseline for stamping grippers is a five-minute daily check of pads, air supply and fasteners; weekly cleaning of PU and NBR pads with warm soapy water, never aggressive solvents; and a full preventive maintenance stop every 500,000 cycles or monthly, covering torque checks on M6/M8 fasteners, cylinder seals, sensor alignment and replacement of wear parts nearing end of life. Document the schedule and results in a format that satisfies IATF 16949 and VDA 6.3 process audits, and review the data quarterly to adjust intervals for new parts or coating changes. Frequently Asked Questions How often should sheet metal gripper contact tips be replaced? There is no universal interval, but on continuous duty tool-steel tips on mild-steel blanks usually last several hundred thousand cycles, PU pads are changed after 200,000-500,000 cycles, and carbide pins can exceed one million. Track cycle counts per gripper, inspect tips at weekly stops and replace them when height loss reaches about 1-1.5 mm. What is the typical wear life of PU pads versus tungsten carbide pins? PU pads are a consumable: on outer-panel lines they usually deliver 200,000-500,000 cycles before glazing, cracking or compression set, and are replaced proactively. Tungsten carbide pins are harder and, on clean AHSS structural parts, can exceed one million cycles. Actual life depends on blank material, edge condition, oil and clamping force, so record intervals from your CMMS. How can operators detect gripper wear before it causes downtime? Watch the early signals: increasing part-position scatter, faint witness marks on outer panels, audible slipping at the transfer point, and vacuum-cup faults that follow pad deterioration. Add a shift-start visual check and a weekly measurement of pad height and tip profile. Part-presence and double-blank sensors catch mis-picks, and cycle-count logging turns wear into a scheduled event. Can over-clamping accelerate gripper wear and damage panels? Yes. Excessive clamping force flattens PU pads, accelerates tip wear and can leave permanent indent marks on soft outer panels. Clamping force should be sized from part mass multiplied by gravity plus peak trajectory acceleration, times a safety factor of two to three, and set with a regulator and gauge rather than full shop air. What preventive maintenance schedule is recommended for stamping grippers? A baseline is a five-minute daily check of pads, air supply and fasteners; weekly cleaning of PU and NBR pads with warm soapy water; and a full maintenance stop every 500,000 cycles or monthly. The maintenance stop covers torque checks on M6/M8 fasteners, cylinder seals, sensor alignment and wear-part replacement, documented for IATF 16949 and VDA 6.3 audits. How does a quick-change gripper design reduce changeover downtime? Quick-change design moves wear-part service out of the critical path. One-screw or tool-free tips, indexed turret inserts and pre-assembled pad cartridges let operators replace a worn component in two to five minutes. With a zero-point interface, the complete gripper is swapped in under 15 minutes as part of SMED, and wear parts are renewed off-line between runs. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "How often should sheet metal gripper contact tips be replaced?", "acceptedAnswer": { "@type": "Answer", "text": "There is no universal interval, but on continuous duty tool-steel tips on mild-steel blanks usually last several hundred thousand cycles, PU pads are changed after 200,000-500,000 cycles, and carbide pins can exceed one million. Track cycle counts per gripper, inspect tips at weekly stops and replace them when height loss reaches about 1-1.5 mm." } }, { "@type": "Question", "name": "What is the typical wear life of PU pads versus tungsten carbide pins?", "acceptedAnswer": { "@type": "Answer", "text": "PU pads are a consumable: on outer-panel lines they usually deliver 200,000-500,000 cycles before glazing, cracking or compression set, and are replaced proactively. Tungsten carbide pins are harder and, on clean AHSS structural parts, can exceed one million cycles. Actual life depends on blank material, edge condition, oil and clamping force, so record intervals from your CMMS." } }, { "@type": "Question", "name": "How can operators detect gripper wear before it causes downtime?", "acceptedAnswer": { "@type": "Answer", "text": "Watch the early signals: increasing part-position scatter, faint witness marks on outer panels, audible slipping at the transfer point, and vacuum-cup faults that follow pad deterioration. Add a shift-start visual check and a weekly measurement of pad height and tip profile. Part-presence and double-blank sensors catch mis-picks, and cycle-count logging turns wear into a scheduled event." } }, { "@type": "Question", "name": "Can over-clamping accelerate gripper wear and damage panels?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. Excessive clamping force flattens PU pads, accelerates tip wear and can leave permanent indent marks on soft outer panels. Clamping force should be sized from part mass multiplied by gravity plus peak trajectory acceleration, times a safety factor of two to three, and set with a regulator and gauge rather than full shop air." } }, { "@type": "Question", "name": "What preventive maintenance schedule is recommended for stamping grippers?", "acceptedAnswer": { "@type": "Answer", "text": "A baseline is a five-minute daily check of pads, air supply and fasteners; weekly cleaning of PU and NBR pads with warm soapy water; and a full maintenance stop every 500,000 cycles or monthly. The maintenance stop covers torque checks on M6/M8 fasteners, cylinder seals, sensor alignment and wear-part replacement, documented for IATF 16949 and VDA 6.3 audits." } }, { "@type": "Question", "name": "How does a quick-change gripper design reduce changeover downtime?", "acceptedAnswer": { "@type": "Answer", "text": "Quick-change design moves wear-part service out of the critical path. One-screw or tool-free tips, indexed turret inserts and pre-assembled pad cartridges let operators replace a worn component in two to five minutes. With a zero-point interface, the complete gripper is swapped in under 15 minutes as part of SMED, and wear parts are renewed off-line between runs." } } ] } Conclusion Gripper wear is a controllable variable in automotive stamping production. When contact materials are matched to the blank, clamping force is set from real transfer loads, wear parts are modular and quick to change, and inspections follow a documented schedule, most wear-related stops disappear. The data in this guide — pad life of 200,000-500,000 cycles, carbide pins beyond one million cycles, weekly inspections and maintenance stops every 500,000 cycles — gives maintenance and automation teams a practical baseline to adapt to their own part mix and press lines. Our engineering team can help you review your current end-of-arm tooling, select wear-resistant contact materials and define a maintenance plan that fits your dies, coatings and cycle rates. Contact us with your part drawings and line data for a qualified recommendation.

How to Avoid Gripper Interference with Dies and Robots in Automotive Press Lines A sheet metal gripper that collides with a die, a robot or a transfer beam can stop an automotive press line for hours and damage tooling that takes weeks to replace. Interference is rarely a random event; it is almost always the result of incomplete geometry data, missing clearances or unchecked motion paths. This article explains where gripper interference actually occurs in tandem lines, transfer presses and robot-fed cells, and how to prevent it with a complete 3D digital mock-up, offline simulation with safety gaps of 20 to 50 mm, correct robot programming and disciplined prove-out procedures. You will learn which clearances experienced integrators respect, why real-world deviations still force a physical tryout, and how simulation reports and change records support IATF 16949 and VDA 6.3 audits. Commissioning engineers, process planners and maintenance teams can apply the same checklist to new lines, die changes and existing cells. The payoff is shorter commissioning, fewer die repairs and higher press line uptime. What Is Gripper Interference on Automotive Press Lines? Gripper interference is any unintended contact between the end-of-arm tooling and the equipment around it: die components, press frames, robots, transfer beams, sensors or part-handling stations. In automotive stamping the high-risk zones are the destacker pickup area, the die space during loading and unloading, the inter-press robot corridor and the handover points between presses. The gripper carries not only jaws or vacuum cups but also sensor brackets, cables and air hoses, and every one of these elements can collide. Because presses cycle 8 to 18 times per minute on large outer-panel lines and up to 30 SPM on small-part lines, even a small clearance error repeats thousands of times per shift. Interference falls into three families. Die interference happens when the tool enters the die space while the blank holder, lifters, pilots or returning cams are still in the way, or when the gripper contacts draw beads and trim steels during part extraction. Robot interference occurs when the robot cannot reach a programmed point, passes through a singularity and reorients its wrist unexpectedly, or carries a load above its rated capacity so that the arm deflects into the die. Utility interference involves cables, hoses and quick couplers snagging on die posts, bolsters or safety fences. All three share the same root causes: outdated CAD data, components missing from the simulation model, ignored dynamic deflection and undocumented changes. Clearance is the universal countermeasure. Industry practice for offline simulation is to keep a safety gap of 20 to 50 mm between the gripper and any stationary object, and larger values where robot path repeatability, part position variation or tool deflection is uncertain. Real-world deviations explain why physical prove-out remains mandatory: blank position can vary by several millimeters, die components wear, bolsters settle and robot calibration drifts. The geometry that matters changes with the press concept. In tandem lines, the robot enters a relatively open die space between presses, and the critical zone is the die-open envelope with blank holder and lifters extended. In transfer presses, the crossbar moves the gripper through a fixed stroke window, and the tool must clear the upper die at its lowest point during the transfer motion. Destackers add their own constraints: the gripper approaches the top blank at an angle, and a misjudged height can drive jaws into the stack or into the sheet separator magnets. Why Interference Prevention Protects Dies, Robots and Delivery Schedules A single collision can erase weeks of production planning. Outer-panel and structural dies are expensive, long-lead assets: when a gripper or robot drives a blank into a draw surface or smashes a trim steel, the die must be pulled, welded, remachined and retried, and every day in the toolroom is a day of lost output. Robot crashes are almost as costly, because a bent wrist or overloaded axis means recalibration, replacement components and re-qualification of every program that uses the robot. The cost is not only financial: a crashed die can delay PPAP submissions and derail new model launches that were planned months in advance. Press shops that treat interference as a commissioning nuisance rather than a design risk keep paying for it, because the same clearance error returns after every die change. A systematic interference-prevention program delivers four measurable benefits: Protection of high-value dies. Keeping the end-of-arm tooling 20 to 50 mm clear of die components in simulation, and re-verifying paths after every die maintenance or reshimming job, prevents the most expensive failure mode in the press shop: die damage that stops a line for days and consumes weeks of toolroom capacity. Uninterrupted robot and transfer operation. Reachability verification, singularity-free programming and payload checks keep every axis inside its rated envelope, so the gripper never turns a healthy robot into a crashed one and the automation cell keeps its planned cycle time shift after shift. Faster commissioning and predictable changeover. When clearances are proven in the digital mock-up first, dry-cycle tryout runs shorter, and documented gap values make die changes and model changeovers a planned activity instead of an experiment performed on production time. Audit-ready engineering records. Simulation reports, clearance checks, prove-out logs and change documentation map directly to IATF 16949 and VDA 6.3 expectations for risk analysis, process control and change management, so that prevention becomes evidence rather than anecdote. The program also protects people. Collisions shake the press and the robot, loosen guards and sensors, and create situations where operators must work close to moving equipment to recover damaged parts. A clean, interference-free cell keeps operators out of the danger zone, supports safe-mode restart procedures and reduces the pressure that leads to shortcuts during night shifts. Every avoided collision also protects the metrics that customers audit: OEE, scrap rate, die maintenance cost and on-time delivery. Suppliers that document systematic interference prevention present fewer incidents in customer scorecard reviews and can quote more competitive delivery dates, because their press lines are predictable. That reliability shows up directly in the delivery performance that automotive customers rank first in supplier scorecards. How to Eliminate Gripper Interference in Five Steps The method below follows the workflow used when a new gripper is commissioned on a tandem line, a transfer press or a robot-fed cell. Apply all five steps; skipping the last one is the most common reason interference appears after handover. Step 1: Build a complete digital mock-up and simulate every motion Assemble the model from the same CAD that the die shop and the robot programmer use: press kinematics with the stroke curve, the die in open and closed positions, blank holder and lifters at true heights, the robot with its real controller kinematics, and the gripper with jaws, cups, sensors, brackets, cables and hoses. Run the full cycle at production speed with a collision-detection tolerance set to the agreed 20 to 50 mm safety gap. Simulate the worst cases: maximum blank thickness, fastest acceleration, the part at the edge of its position tolerance, and both the unload and the reload motions. Step 2: Map the die-open envelope and every pinch point Walk through the die space zone by zone before writing a single path. Note the open height of the blank holder, the extended position of lifters and pilots, the return stroke of cams, and the location of draw beads, trim steels and sensors inside the die. Define the gripper entry direction so that jaws and cups reach their clamping points, at least 3 to 5 mm from trim edges and clear of A-class surfaces, without crossing any component that moves during the stroke. Mark every pinch point in the model and add each one to the prove-out checklist. Step 3: Verify robot reachability, payload and path robustness Check every programmed point against the robot working envelope with the gripper and the heaviest blank mounted, including the wrist orientation at the loading position inside the die. Verify that the combined mass stays below the rated payload at the flange with the dynamic factor applied: stopping a 30 kg tool and blank from 2 m/s at 1.5 to 2 g demands force and torque margins that static checks simply miss. Keep paths away from singularities, where the wrist can reorient violently, and add approach and retract motions that follow the same corridor as the working move. Step 4: Protect sensors, cables and air supply from the motion itself Interference is often caused by the gripper's own accessories. Mount part-in-position and double-blank sensors with standoffs and protective brackets, route cables and air hoses with service loops that follow the robot motion, and use quick-change couplers so that the frame separates cleanly at changeover. Secure every hose clamp and connector; a loose airline that drops into the die space is a collision waiting to happen. Label the utility routing on the drawing so that maintenance reconnects it correctly after repair. Step 5: Prove out at reduced speed, document and hand over Run the first dry cycles at 10 to 30 percent of production speed with an operator at the teach pendant, then step up in stages while watching the clearance at the tightest points. After full-speed validation, re-torque the gripper mounting, check pad and cup condition, and record the results: simulation report, clearance values, prove-out log and any program changes. Update the risk analysis and hand the complete package to production, because IATF 16949 and VDA 6.3 treat this documentation as evidence of controlled process design. Frequently Asked Questions What clearance should a gripper keep from dies in simulation? Keep a safety gap of 20 to 50 mm between the gripper and any die component at the closest approach point in the offline model. Use the upper end when robot repeatability is uncertain or the blank position varies. The physical prove-out must confirm the gap at every station before the line runs in production. Can offline simulation replace physical tryout completely? No. Simulation eliminates most geometry errors, but real systems deviate: blanks shift on the destacker, dies wear, bolsters settle and robot calibration drifts. Commissioning still includes dry cycles at reduced speed to confirm clearances, and the prove-out log becomes handover documentation. Simulation makes tryout short and safe; it does not replace it. Why does a gripper hit the die when the robot program looks correct? Usually because the model no longer matches reality. The die was modified or reshimmed, a lifter spring was replaced, blank thickness changed, or the blank sits a few millimeters off its nominal position. The gripper can also deflect under load. Re-check clearances with the installed tool in the actual press. Which robot problems cause most interference? Three causes dominate: programmed points outside the reachable envelope, paths crossing singularities where the wrist reorients violently, and payload beyond the rated capacity so the arm deflects. Approach and retract motions that differ from the working path are another source. Dynamic simulation with real masses catches most of these before steel meets steel. When should gripper paths be re-verified? Re-verify after any change that alters geometry: die maintenance or reshimming, tryout of a new die, robot replacement or recalibration, gripper rebuild, or a change in blank material or thickness. Also re-check after any collision, even a minor one, because hidden deformation can cause a second incident. Add a periodic clearance review to maintenance. How does interference prevention support IATF 16949 and VDA 6.3? Both standards expect suppliers to control process design risk. Simulation reports, clearance records, prove-out logs and change documentation demonstrate that interference was analyzed and verified rather than discovered by accident. Updating the process FMEA with collision modes and their controls closes the loop. Customer auditors of press shops commonly request these records. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What clearance should a gripper keep from dies in simulation?", "acceptedAnswer": { "@type": "Answer", "text": "Keep a safety gap of 20 to 50 mm between the gripper and any die component at the closest approach point in the offline model. Use the upper end when robot repeatability is uncertain or the blank position varies. The physical prove-out must confirm the gap at every station before the line runs in production." } }, { "@type": "Question", "name": "Can offline simulation replace physical tryout completely?", "acceptedAnswer": { "@type": "Answer", "text": "No. Simulation eliminates most geometry errors, but real systems deviate: blanks shift on the destacker, dies wear, bolsters settle and robot calibration drifts. Commissioning still includes dry cycles at reduced speed to confirm clearances, and the prove-out log becomes handover documentation. Simulation makes tryout short and safe; it does not replace it." } }, { "@type": "Question", "name": "Why does a gripper hit the die when the robot program looks correct?", "acceptedAnswer": { "@type": "Answer", "text": "Usually because the model no longer matches reality. The die was modified or reshimmed, a lifter spring was replaced, blank thickness changed, or the blank sits a few millimeters off its nominal position. The gripper can also deflect under load. Re-check clearances with the installed tool in the actual press." } }, { "@type": "Question", "name": "Which robot problems cause most interference?", "acceptedAnswer": { "@type": "Answer", "text": "Three causes dominate: programmed points outside the reachable envelope, paths crossing singularities where the wrist reorients violently, and payload beyond the rated capacity so the arm deflects. Approach and retract motions that differ from the working path are another source. Dynamic simulation with real masses catches most of these before steel meets steel." } }, { "@type": "Question", "name": "When should gripper paths be re-verified?", "acceptedAnswer": { "@type": "Answer", "text": "Re-verify after any change that alters geometry: die maintenance or reshimming, tryout of a new die, robot replacement or recalibration, gripper rebuild, or a change in blank material or thickness. Also re-check after any collision, even a minor one, because hidden deformation can cause a second incident. Add a periodic clearance review to maintenance." } }, { "@type": "Question", "name": "How does interference prevention support IATF 16949 and VDA 6.3?", "acceptedAnswer": { "@type": "Answer", "text": "Both standards expect suppliers to control process design risk. Simulation reports, clearance records, prove-out logs and change documentation demonstrate that interference was analyzed and verified rather than discovered by accident. Updating the process FMEA with collision modes and their controls closes the loop. Customer auditors of press shops commonly request these records." } } ] } Conclusion Interference between grippers, dies and robots is the most preventable source of damage and downtime in automotive stamping. The defense is systematic: build a complete digital mock-up, enforce a 20 to 50 mm safety gap in simulation, map every pinch point in the die-open envelope, verify reachability and payload dynamically, protect cables and sensors, and prove the whole sequence at reduced speed before production. Documenting each step turns prevention into evidence that satisfies IATF 16949 and VDA 6.3 auditors and protects the plant when incidents do occur. Our engineering team can review your gripper layout and press line kinematics, run the interference analysis with you, and propose clearances, sensor positions and prove-out plans for your next tooling project. Contact us with your drawings and process data to get started.

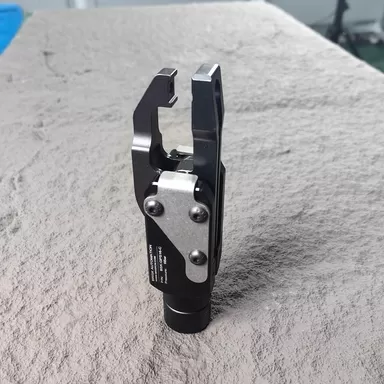

Sheet Metal Gripper vs Vacuum Gripper for Automotive Stamping: How to Choose Choosing the right sheet metal gripper for an automotive stamping line directly affects uptime, part quality and tooling cost. This guide compares mechanical grippers with vacuum grippers on the criteria that matter most in real press shops: holding force on oily blanks, surface protection, cycle time, maintenance and total cost of ownership. Mechanical grippers clamp blanks with pneumatically driven jaws and polyurethane pads, delivering predictable holding force even when blanks carry mill oil or drawing compound. Vacuum grippers pick parts without leaving marks and release almost instantly, but their seal is vulnerable to oil films, perforations and rough edges. We explain the physics of both technologies, review realistic friction coefficients and vacuum levels, and provide a step-by-step selection method for door panels, fenders, hoods, body sides and structural parts in mild steel, AHSS and aluminum. When you finish, you will have a clear decision path for your next end-of-arm tooling project. What Are Mechanical Sheet Metal Grippers and Vacuum Grippers? A sheet metal gripper is an end-of-arm tooling device that holds a blank or a formed panel during destacking, inter-press transfer and press loading. In automotive stamping, two families dominate. The first is the mechanical gripper, which uses pneumatically actuated jaws or clamping units to pinch the workpiece between a fixed anvil and a moving pad faced with polyurethane, nitrile rubber or hardened carbide pins. Clamping force is transmitted through a lever or wedge mechanism, and a spring returns the jaw when air pressure is removed so the gripper fails safe if the supply drops. The second is the vacuum gripper, which lifts parts by creating a pressure differential across suction cups fed by venturi generators or a central vacuum network. The physics behind each type is different and dictates where it works. A mechanical gripper develops friction force F = μ × N, where N is the pneumatic clamping force and μ is the friction coefficient between pad and blank. Steel-on-steel contacts typically give μ values of 0.15 to 0.2, while polyurethane or nitrile pads against steel reach 0.5 to 0.8. Designers size the normal force so that the resulting friction force exceeds the part weight plus acceleration load by a safety factor of two to three. A vacuum gripper instead generates a force of roughly F = Δp × A per cup, where Δp is the pressure differential and A is the effective cup area. Common vacuum levels lie between -60 and -80 kPa, and cup diameters range from about 30 mm for small structural parts up to 150 mm for large outer panels. The operating environment decides which principle stays reliable. Blanks arriving at the destacker are covered with mill oil, rust-preventive oil or drawing compound, and outer panels may be perforated or contain knockout holes. Oil films and leak paths break the vacuum seal exactly when the line runs fastest, so cup tools lose holding force on precisely the parts that are hardest to handle. Mechanical clamps are insensitive to oil, permeability and burrs, which is why they dominate tandem lines and transfer presses processing thousands of blanks per shift. Vacuum tools earn their place on dry, clean, non-porous parts, on aluminum panels where clamping marks are unacceptable, and in low-cost applications with generous cycle time. Why the Gripper Choice Drives Cost, Quality and Uptime Specifying the wrong gripper technology is one of the most common and most expensive mistakes in press shop automation. A vacuum cup that loses its seal on an oily blank drops the part into the die area; the resulting misfeed can nick draw surfaces, crack trim steels and stop the line for hours while toolmakers rework the die. A mechanical gripper with hard steel contacts can leave visible indentations on Class-A exterior panels, forcing rework or scrap on parts that were expensive to produce. Slippage during high-speed transfer shifts the part by a few millimeters, enough to misload the die and damage both the tool and the end-of-arm tooling itself. The financial impact compounds quickly. Large outer-panel dies are expensive assets with long repair lead times, so a single collision can idle an entire tandem line while replacement inserts are machined and fitted. Every stopped minute reduces overall equipment effectiveness, delays customer deliveries and strains the just-in-time schedules that automotive OEMs expect their suppliers to hold. Choosing the correct clamping principle is therefore a risk-management decision as much as an engineering one. When the selection logic is applied to the real part mix, four advantages follow: Reliable holding on oily, coated and perforated blanks. Clamping force does not depend on a seal, so mill oil, drawing compound, punched holes and shear burrs cannot reduce the grip. This is the decisive advantage on destackers and high-speed tandem lines processing DC01, DC04, SPCC, HSLA and DP600 to DP980 advanced high-strength steel blanks. Class-A surface protection through controlled contact. Polyurethane and nitrile pads spread the clamping load across the blank, protecting door outers, fenders, hoods and liftgates as long as the contact points stay clear of show surfaces, draw beads and trim lines during the whole transfer motion. Repeatable positioning accuracy for die loading. Positive stops, fixed jaw travel and rigid frames hold the blank within tight tolerances at every cycle, keeping trim, flange and piercing operations stable over millions of strokes and reducing the risk of misfeeds. Lower total cost of ownership. Modular jaws, replaceable polyurethane pads and carbide pins are inexpensive to renew, whereas vacuum tools accumulate consumable cost for cup diaphragms, venturi nozzles, filters and leak monitoring over the life of the equipment. Vacuum technology still wins in clearly defined niches. When the blank is dry and non-porous, cup tools provide fast pick-up, gentle handling and simple frames at lower initial cost, and they suit aluminum outer panels where even soft pads can mark the surface. Many suppliers combine both principles on one end-of-arm tooling: mechanical clamps carry the load on oily zones while vacuum cups stabilize large flexible panels. Understanding these trade-offs lets a plant match the gripper to each part family instead of standardizing on one technology and paying for its weaknesses in scrap, downtime and maintenance. How to Choose Between Mechanical and Vacuum Grippers Use the five steps below whenever you specify a gripper for a new part, a new press or a converted line. The method works for destackers, tandem presses, transfer presses and robot-fed cells, and it produces the documentation that IATF 16949 and VDA 6.3 auditors expect to see. Step 1: Characterize the blank, its surface and its lubrication Start with the part data sheet: material grade, thickness, mass and surface class. Outer panels such as doors, fenders and hoods are usually 0.6 to 0.8 mm mild or bake-hardenable steel or 5xxx/6xxx aluminum, while structural parts like B-pillars, floors and cross members reach 2.5 to 4 mm in HSLA or DP600 to DP980 grades. Record whether the blank arrives dry, oiled or with drawing compound, and note perforations, knockout holes and burr orientation. This profile decides immediately whether vacuum cups are worth evaluating at all or whether mechanical clamping is mandatory. Step 2: Calculate clamping force and vacuum demand Size the tool from worst-case dynamics. The required holding force is the part weight multiplied by gravity plus the peak acceleration of the robot or transfer beam, times a safety factor of two to three. For a 10 kg door outer blank accelerated at 1.5 g, the design load is about 245 N, so the total gripper capacity should reach roughly 500 to 750 N. For mechanical grippers, divide this demand by the friction coefficient, 0.5 to 0.8 for polyurethane pads, to obtain the normal clamping force per jaw. For vacuum grippers, compare the same demand with the theoretical force per cup, Δp times the effective area, and derate generously: at -60 to -80 kPa a 100 mm cup delivers roughly 470 to 630 N on a perfect seal, but oily or rough blanks can cut the effective force by 50 percent or more. Step 3: Check geometry, edge distance and die constraints Place clamping points at least 3 to 5 mm from trim edges so the jaws never deform the cut line, and keep every contact away from draw beads, locating holes and Class-A zones. Verify that the tool clears the blank holder, lifters, pilots and returning cams in the die-open position, and confirm that the frame fits inside the die space at every stroke position. Include part-in-position sensors and double-blank detectors in the layout; on destackers, magnetic or thickness-based double-blank sensing prevents two blanks from entering the die together. Step 4: Evaluate cycle time, robot payload and changeover Large outer-panel lines run at 8 to 18 strokes per minute, while small-part lines reach 20 to 30 SPM, so gripper mass and inertia directly limit the acceleration that the cell can achieve. Check that the robot or transfer system handles the gripper plus the heaviest blank within its rated payload at full speed, including the dynamic factor of 1.5 to 2 g during start and stop. For mixed-model production, design a quick-change frame with zero-point coupling and pneumatic or electric locking so that changeover stays inside a 15-minute window, following SMED principles. Step 5: Validate on production blanks and standardize Never release a gripper without a trial on real blanks with real lubrication. Run several thousand cycles across the full speed range, measure slippage, check pad wear and confirm sensor reliability on oily surfaces. Record the results, then reuse the validated jaw, pad and frame modules for similar parts so that the next project starts from proven geometry instead of an empty screen. Frequently Asked Questions Can vacuum grippers hold oily sheet metal blanks reliably? Not reliably. Mill oil and drawing compound reduce blank surface energy and create leak paths under the cup lip, so effective vacuum falls far below the nominal -60 to -80 kPa. Skipped or dropped blanks follow on destackers. Mechanical grippers with polyurethane pads need no seal, which is why they stay standard for oily blanks. Do mechanical grippers damage Class-A automotive panels? Only when they are designed or applied incorrectly. Hard steel contacts can indent soft outer panels, and any pad touching a show surface leaves a witness mark. Correctly engineered mechanical grippers use polyurethane pads, generous contact area and clamping points 3 to 5 mm from trim edges, clear of draw beads and A-class zones. Which technology grips faster, mechanical or vacuum? Vacuum pick-up and release take about 100 to 300 ms with properly sized venturi generators, slightly faster than a pneumatic jaw stroke. In practice the difference is small next to robot travel time on lines running at 8 to 18 SPM or 20 to 30 SPM, so cycle time alone should not decide the technology. Can a mechanical gripper handle aluminum and AHSS blanks? Yes. Mechanical grippers handle 5xxx and 6xxx aluminum and HSLA and DP600 to DP980 steels without difficulty, because grip comes from clamping force rather than magnetism or vacuum. Spring-back, surface oil and punched holes do not affect holding. Match pad hardness and contact pressure to the material yield strength and surface sensitivity. What safety factor is used when sizing stamping grippers? Industry practice applies a safety factor of two to three to the worst-case dynamic load: part weight multiplied by gravity plus maximum acceleration of the robot or transfer beam. For a 10 kg door outer blank at 1.5 g, the design load is about 245 N and gripper capacity should reach 500 to 750 N. Is a hybrid tool with jaws and vacuum cups a good option? Often yes. Hybrid end-of-arm tooling uses mechanical clamps where the load is highest and vacuum cups to stabilize large flexible panels such as hoods, roofs and doors during transfer. It combines reliable gripping with surface-friendly support and suits outer-panel lines, though it needs more engineering and validation than a single-technology frame. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "Can vacuum grippers hold oily sheet metal blanks reliably?", "acceptedAnswer": { "@type": "Answer", "text": "Not reliably. Mill oil and drawing compound reduce blank surface energy and create leak paths under the cup lip, so effective vacuum falls far below the nominal -60 to -80 kPa. Skipped or dropped blanks follow on destackers. Mechanical grippers with polyurethane pads need no seal, which is why they stay standard for oily blanks." } }, { "@type": "Question", "name": "Do mechanical grippers damage Class-A automotive panels?", "acceptedAnswer": { "@type": "Answer", "text": "Only when they are designed or applied incorrectly. Hard steel contacts can indent soft outer panels, and any pad touching a show surface leaves a witness mark. Correctly engineered mechanical grippers use polyurethane pads, generous contact area and clamping points 3 to 5 mm from trim edges, clear of draw beads and A-class zones." } }, { "@type": "Question", "name": "Which technology grips faster, mechanical or vacuum?", "acceptedAnswer": { "@type": "Answer", "text": "Vacuum pick-up and release take about 100 to 300 ms with properly sized venturi generators, slightly faster than a pneumatic jaw stroke. In practice the difference is small next to robot travel time on lines running at 8 to 18 SPM or 20 to 30 SPM, so cycle time alone should not decide the technology." } }, { "@type": "Question", "name": "Can a mechanical gripper handle aluminum and AHSS blanks?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. Mechanical grippers handle 5xxx and 6xxx aluminum and HSLA and DP600 to DP980 steels without difficulty, because grip comes from clamping force rather than magnetism or vacuum. Spring-back, surface oil and punched holes do not affect holding. Match pad hardness and contact pressure to the material yield strength and surface sensitivity." } }, { "@type": "Question", "name": "What safety factor is used when sizing stamping grippers?", "acceptedAnswer": { "@type": "Answer", "text": "Industry practice applies a safety factor of two to three to the worst-case dynamic load: part weight multiplied by gravity plus maximum acceleration of the robot or transfer beam. For a 10 kg door outer blank at 1.5 g, the design load is about 245 N and gripper capacity should reach 500 to 750 N." } }, { "@type": "Question", "name": "Is a hybrid tool with jaws and vacuum cups a good option?", "acceptedAnswer": { "@type": "Answer", "text": "Often yes. Hybrid end-of-arm tooling uses mechanical clamps where the load is highest and vacuum cups to stabilize large flexible panels such as hoods, roofs and doors during transfer. It combines reliable gripping with surface-friendly support and suits outer-panel lines, though it needs more engineering and validation than a single-technology frame." } } ] } Conclusion Choosing between a mechanical sheet metal gripper and a vacuum gripper is a process decision, not a catalog decision. Mechanical grippers deliver predictable clamping force on oily, coated and perforated blanks, which is why they anchor most destackers, tandem lines and transfer presses in automotive stamping. Vacuum grippers remain valuable for dry, clean parts, aluminum panels and low-initial-cost applications. Start by characterizing the blank, calculate forces with realistic coefficients and vacuum levels, apply a safety factor of two to three, and validate on production parts. Hybrid tools often provide the best compromise between reliability and surface quality. Contact our engineering team with your part drawings and process data, and we will propose a gripper layout, clamping forces and a quick-change concept matched to your press line.

How Custom Sheet Metal Grippers Improve Changeover Efficiency in Multi-Model Automotive Production A custom sheet metal gripper is one of the fastest levers for reducing changeover time in multi-model automotive stamping. When doors, fenders, hoods, decklids and structural parts share one tandem or transfer line, every model change consumes minutes or hours of re-tooling, re-teaching and trial strokes. Purpose-built end-of-arm tooling with a common robot interface and zero-point quick-change coupling lets operators swap grippers in minutes—often within the 15-minute SMED target—without adjusting a single fastener on the robot flange. Because each gripper is designed around a defined part family, clamping points, clearances and positioning repeatability are fixed in advance, so die interference risk drops and quality is stable from the first stroke after restart. This guide explains what custom sheet metal grippers are, why they accelerate changeover, and how to design, simulate, validate and manage a gripper fleet across mixed-model production, with practical notes on payload, vacuum sizing, offline simulation and IATF 16949 documentation. What Custom Sheet Metal Grippers Do in Multi-Model Production Multi-model production means one press line processes several part numbers in sequence—left and right door outers, fenders for different vehicle generations, hoods, decklids, floor panels, cross members and B-pillar reinforcements. The parts differ in geometry, weight, material and thickness: mild steel DC01–DC04, galvanized sheet, AHSS from DP600 to DP980, and 5xxx/6xxx aluminum, from 0.6–0.8 mm outer skins to 2.5–4 mm structural blanks. Between batches the line stops while dies and grippers are exchanged, and every minute of that stop is pure cost against the plant's overall equipment effectiveness. A custom sheet metal gripper is end-of-arm tooling engineered for one specific part or a closely related family of parts. Its finger geometry, contact points, vacuum cup layout, sensor positions and frame stiffness are all derived from the part CAD model and the die layout. Unlike universal grippers that must be adjusted on the line, a custom gripper arrives with deterministic geometry: the same part is always presented to the die in the same position, held at the same points, with the same clearance to tooling. For mirror-image pairs, one gripper often serves both sides using adjustable or spring-loaded pins, which extends the concept across a whole family of similar panels. Custom grippers also carry the hardware that makes changeover fast: a standardized mounting plate, a zero-point quick-change coupling, automatic connectors for air, vacuum and electrical signals, and usually an RFID tag for tool identification. Because every gripper in the fleet shares one interface, the robot never needs re-teaching between models; the changeover becomes a mechanical exchange with a fixed, repeatable result rather than an engineering exercise. In effect, the press line treats a gripper change the way a machining center treats a tool change—measured in minutes instead of hours. That predictability is what allows production planners to schedule small batches of several models without paying a quality penalty at every restart. Why Custom Grippers Accelerate Changeover and Cut Downtime Changeover time in stamping has two components: die exchange and the setup of every device that touches the part—feeders, sensors and especially grippers. Universal or manually adjusted tooling turns the second component into a bottleneck, because each model change demands repositioning, re-teaching and trial parts. Custom grippers remove that bottleneck by design, and they deliver four measurable benefits to mixed-model production. The effect grows with the number of models: the more variants a line runs, the more often changeover time repeats and the more valuable every saved minute becomes. Plug-and-play exchange replaces on-line engineering. With a common interface and quick-release couplings, operators remove one gripper and mount the next in minutes, without tools at the robot flange. Air, vacuum and signal lines connect simultaneously through automatic couplers, and the zero-point system guarantees the same position every time. Plants applying this approach routinely reach gripper changeover times of 15 minutes or less, fully inside SMED expectations for mixed-model scheduling. Deterministic positioning protects first-article quality. Because nests, locating pins and contact points are fixed in the gripper design, every part is presented identically, cycle after cycle. The first stroke after restart is as accurate as the ten-thousandth, which shortens trial runs, reduces scrap during ramp-up and prevents class-A surface damage from misaligned pick-ups. Repeatable presentation also simplifies the documentation expected under PPAP and IATF 16949. Parallel, offline preparation shrinks line stops. SMED distinguishes internal setup, performed while the line is stopped, from external setup, done in advance. Custom grippers support external work completely: the next gripper is pre-set on its stand, its sensors verified and spare parts checked while the current model still runs. The line stop then covers only the physical exchange and a fast validation, not the entire setup sequence. Lower total cost and risk across model ramps. A modular fleet built on standard components simplifies spare-part stocking, shortens delivery of additional grippers for new models, and eliminates crash-related re-teaching. Die interference is minimized because clearances were verified during design and simulation. Over years of mixed-model production, the avoided downtime and rework typically outweigh the initial engineering investment many times over. Measured against typical multi-model schedules—several changeovers per week or even per shift—minutes saved per change multiply into hours of additional press availability every month. For a line running 20 SPM, every ten minutes of avoided downtime represents roughly two hundred additional strokes: real parts that can be shipped instead of lost. That is why gripper strategy belongs in the same discussion as die strategy when a plant plans its mixed-model production program. How to Design Custom Grippers for Rapid Multi-Model Changeover A successful custom gripper program follows a disciplined path from part analysis to validated fleet management. The five steps below mirror the process our engineering team applies with stamping customers, and they work for both new press lines and retrofit projects. 1. Analyze the part family and define the gripping strategy Collect CAD models, masses and process data for every part the gripper must handle, including mirror-image variants. Note the material and thickness—0.6–0.8 mm aluminum or mild steel outer panels behave very differently from 2.5–4 mm AHSS structural parts—and identify class-A surfaces, trimmed edges and draw beads. Then decide between mechanical clamping, vacuum cups or hybrid holding. Define contact points at least 3–5 mm from trimmed edges and distribute them around the center of gravity so dynamic loads at 8–30 SPM cannot rotate the part during transfer. 2. Standardize the robot interface and quick-change hardware Define one mounting standard for the whole fleet: the same flange pattern, the same zero-point quick-change coupling, and automatic couplers that connect air, vacuum and electrical signals in a single motion. Alignment pins and coded connectors make wrong assembly physically impossible, while an RFID tag on each gripper lets the control system verify that the correct tool is mounted and load its parameters automatically. The engineering target is a complete gripper exchange in 15 minutes or less, including the sensor check. 3. Design for offline pre-setting, storage and identification Every gripper needs a dedicated stand or rack where it can be pre-set, stored and maintained without occupying the robot. Pre-set tooling such as sensor brackets, spare contact tips and vacuum cups should be exchangeable while the gripper sits on the stand. Clear identification through RFID, barcode or color coding prevents the wrong gripper being picked during a night shift, and a controlled storage area protects the tooling from forklift damage and dirt. This is the physical foundation of SMED external setup. 4. Simulate motion, payload and clearances before building Use offline programming and robot simulation to verify that each gripper reaches every part position without collision and maintains the recommended 20–50 mm clearance to dies and automation at full cycle speed. Check that the combined mass of gripper and part stays within the robot or crossbar payload, including dynamic factors, and confirm the cycle time against the target SPM of the line. Simulation catches interference that would otherwise surface as a crash during the first production run after a changeover. 5. Validate on the line, document and manage the fleet Qualify each gripper with real blanks at production speed: verify positioning accuracy, holding stability, sensor response and release behavior, and record the results in the quality system together with the die trials, as expected under IATF 16949 or VDA 6.3. Train operators and setup teams in the standardized changeover sequence and run timed drills against the 15-minute target. Finally, track wear parts and changeover data so the fleet improves continuously instead of degrading quietly. With the fleet standardized and documented, launching a new model becomes a matter of designing one more gripper to the same interface—reusing proven simulation, validation and training routines instead of starting from zero. Frequently Asked Questions How much changeover time can custom sheet metal grippers save? Plants that replace universal tooling with custom grippers on a standardized quick-change interface typically cut gripper-related changeover from hours to 15 minutes or less. Savings depend on line configuration and team skill. If the old procedure required re-teaching and trial strokes, that work disappears because geometry, sensors and clearances are fixed in the design. What is a zero-point quick-change system for grippers? It is a coupling system that locates the gripper on the robot flange using tapered pins or ground surfaces, clamping it in seconds without adjustment. The same interface is mounted on every gripper, so any tool fits any robot or crossbar. Combined with air, vacuum and electrical couplers, it turns gripper exchange into a repeatable operation. Can one custom gripper handle several similar part numbers? Yes. Grippers are designed for a part family rather than one drawing: left and right mirror panels, or two models with similar geometry. Adjustable pins, exchangeable nests and repositionable cups extend the range while keeping positioning deterministic. But covering too many parts loses the repeatability that makes custom tooling fast, so define the family carefully. Do we need to reprogram the robot after every gripper change? No; that is the central benefit of the concept. If every gripper uses the same mounting standard and part reference points are consistent, each tool has its own stored program, recalled by RFID when mounted. Robot paths were taught and simulated during commissioning, so only a fast verification stroke is needed before restart after every change. What does SMED mean for gripper changeover? SMED, single-minute exchange of die, cuts setup time by moving internal tasks, done while the line stops, to external tasks done in advance. For grippers, that means pre-setting the next tool and checking sensors before changeover begins. Quick-change interfaces make the remaining work a simple exchange, bringing changeover to 15 minutes or below. How long does it take to design and build a custom sheet metal gripper? Typical lead time depends on complexity: a straightforward gripper for one outer panel can be built in a few weeks, while a complex hybrid gripper for a structural part family takes longer. Modular components shorten both design and manufacturing; a qualified supplier provides a drawing-based proposal with payload and cycle time. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "How much changeover time can custom sheet metal grippers save?", "acceptedAnswer": { "@type": "Answer", "text": "Plants that replace universal tooling with custom grippers on a standardized quick-change interface typically cut gripper-related changeover from hours to 15 minutes or less. Savings depend on line configuration and team skill. If the old procedure required re-teaching and trial strokes, that work disappears because geometry, sensors and clearances are fixed in the design." } }, { "@type": "Question", "name": "What is a zero-point quick-change system for grippers?", "acceptedAnswer": { "@type": "Answer", "text": "It is a coupling system that locates the gripper on the robot flange using tapered pins or ground surfaces, clamping it in seconds without adjustment. The same interface is mounted on every gripper, so any tool fits any robot or crossbar. Combined with air, vacuum and electrical couplers, it turns gripper exchange into a repeatable operation." } }, { "@type": "Question", "name": "Can one custom gripper handle several similar part numbers?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. Grippers are designed for a part family rather than one drawing: left and right mirror panels, or two models with similar geometry. Adjustable pins, exchangeable nests and repositionable cups extend the range while keeping positioning deterministic. But covering too many parts loses the repeatability that makes custom tooling fast, so define the family carefully." } }, { "@type": "Question", "name": "Do we need to reprogram the robot after every gripper change?", "acceptedAnswer": { "@type": "Answer", "text": "No; that is the central benefit of the concept. If every gripper uses the same mounting standard and part reference points are consistent, each tool has its own stored program, recalled by RFID when mounted. Robot paths were taught and simulated during commissioning, so only a fast verification stroke is needed before restart after every change." } }, { "@type": "Question", "name": "What does SMED mean for gripper changeover?", "acceptedAnswer": { "@type": "Answer", "text": "SMED, single-minute exchange of die, cuts setup time by moving internal tasks, done while the line stops, to external tasks done in advance. For grippers, that means pre-setting the next tool and checking sensors before changeover begins. Quick-change interfaces make the remaining work a simple exchange, bringing changeover to 15 minutes or below." } }, { "@type": "Question", "name": "How long does it take to design and build a custom sheet metal gripper?", "acceptedAnswer": { "@type": "Answer", "text": "Typical lead time depends on complexity: a straightforward gripper for one outer panel can be built in a few weeks, while a complex hybrid gripper for a structural part family takes longer. Modular components shorten both design and manufacturing; a qualified supplier provides a drawing-based proposal with payload and cycle time." } } ] } Conclusion Custom sheet metal grippers are not an accessory to multi-model production; they are a core enabler of changeover efficiency. By fixing geometry, positioning and clearances in the tooling itself, they remove the re-teaching, adjustment and trial strokes that turn model changes into hours of downtime. Combined with a standardized quick-change interface, zero-point coupling and SMED-based offline pre-setting, they push gripper exchange toward the 15-minute target and make quality repeatable from the first stroke. The path is clear: analyze the part family, standardize the interface, simulate before building, and validate with documented trials under IATF 16949 discipline. If you are planning a new press line or struggling with frequent model changes on an existing one, contact our engineering team with your part list and changeover data—we will help you specify a gripper solution matched to your production program.

What Causes Unstable Gripping During High-Speed Automotive Sheet Transfer? A sheet metal gripper that handles panels flawlessly at 6 SPM can start slipping, tilting, or dropping parts when the same press line accelerates to 15–20 SPM. Unstable gripping during high-speed automotive sheet transfer is rarely one single fault; it is the combined result of dynamic inertial loads, worn or contaminated gripper contacts, vacuum leakage, and clamping forces sized for static conditions. In tandem and transfer press lines running 8–30 SPM, every cycle imposes acceleration forces several times the blank weight, so end-of-arm tooling must be engineered for motion, not for bench tests. This article explains the physical mechanisms behind gripper instability—friction loss on oily steel blanks, suction-cup leakage on AHSS and aluminum panels, and vibration-induced shifting—and why a clamping-force safety factor of 2–3 times is the industry norm. Maintenance and automation engineers will also find a structured troubleshooting routine covering force calculation, contact-pad selection, vacuum verification, geometric alignment, and in-position sensing, helping stamping plants eliminate slippage, surface marks, and unplanned stops before parts reach the die. What Exactly Causes Unstable Gripping During High-Speed Transfer? In an automotive stamping plant, sheet metal grippers move blanks and formed panels between the destacker, the presses of a tandem line, the stations of a transfer press, and the downstream automation. The task sounds simple—pick up, hold rigidly, release on time—but the gripper is precision end-of-arm tooling that must resist forces it never sees at standstill. Large outer-panel lines producing doors, fenders, hoods and decklids run at 8–18 SPM, while smaller structural parts reach 20–30 SPM. Every cycle, the crossbar or robot accelerates, decelerates and reverses direction, generating an inertial force F = m × a that can briefly reach two to five times the part weight. Unstable gripping is the relative motion between the contact element and the sheet under these dynamic loads. It appears in three forms: micro-slip of less than half a millimeter, invisible to the eye yet enough to scratch a class-A surface or shift the blank before die entry; rotation or tilt around the gripping point; and complete release, which sends the part into the die or onto the scrap conveyor. The holding principle decides which failure dominates. Mechanical grippers depend on friction between jaws or fingers and the sheet. The friction coefficient is only 0.15–0.2 for steel against steel, but rises to 0.5–0.8 when polyurethane or nitrile rubber pads contact steel. Because the required clamping force equals the dynamic load divided by the friction coefficient, a low coefficient forces much harder clamping for the same holding effect. Vacuum grippers follow different physics. Cups 30–150 mm in diameter generate force from a pressure differential of typically -60 to -80 kPa, supplied by Venturi generators or a central vacuum network; the holding force equals the differential pressure times the effective cup area. Any leak—through the oil film on a fresh blank, along pores of AHSS, or across draw-bead openings—erodes that differential. At 15–30 SPM, the evacuation time available per stroke is a fraction of a second, so a slow-sealing cup grips late. Sheet materials widen the challenge: 0.6–0.8 mm outer panels in DC01, DC04 or SPCC, and 2.5–4 mm structural parts in HSLA, DP600–DP980, galvanized steel or 5xxx/6xxx aluminum each behave differently at the contact interface. Why Gripper Instability Appears When Press Lines Speed Up Every instability mechanism listed above scales with speed, which is why the same tooling can feel reliable at 6 SPM and dangerous at 18 SPM. Higher cycle rates mean harder acceleration, stronger vibration, less time for vacuum to build, and faster accumulation of wear and contamination. In practice, four root causes explain most cases of gripper slippage and dropped blanks on automotive press lines. Clamping force sized for static conditions. Many tooling packages are dimensioned from part weight using theoretical friction values. At production speed, direction reversals load the blank with two to five times its own weight, and the real friction coefficient is lower than the catalog value once oil, moisture or dust is present. Without a safety factor of 2–3 applied to the worst dynamic case, the reserve disappears exactly at the acceleration peaks and micro-slip begins. Worn or contaminated gripper contacts. Polyurethane and nitrile pads pick up mill oil and drawing lubricant, glaze over time and lose elasticity, which can drop the effective friction coefficient from roughly 0.6 toward 0.3 or below. Steel-to-steel contacts, still found on heavy structural grippers, start at only 0.15–0.2. Serrations wear on AHSS edges and scale. Contacts are wear parts rated for hundreds of thousands to millions of cycles, yet their condition is rarely checked between maintenance windows. Vacuum system limits. Cups selected for flat, clean sheets struggle with oily, porous or formed panels; leakage pulls the vacuum below the -60 to -80 kPa operating range exactly when holding force is needed most. Venturi generators without leak compensation consume air without recovering grip, and one large cup creates single-point dependency. At 20–30 SPM the re-evacuation time after each release is very short, leaving no margin for a worn lip or a clogged filter. Geometry, alignment and vibration. Contact points far from the part's center of gravity, asymmetric finger layouts and compliant aluminum gripper frames amplify dynamic moments; robot overshoot and track vibration add relative motion between cup and sheet. A blank that arrives 1–2 mm out of position at pick-up can arrive seriously misaligned at die entry, risking die interference, edge damage and class-A surface marks that no downstream process can repair. The commercial impact is easy to quantify: a dropped panel can stop a transfer press for minutes, damage a die worth tens of thousands of dollars, or create rework that inflates the cost per part. In plants certified to IATF 16949 or audited to VDA 6.3, every incident triggers containment, analysis and corrective action that consume engineering time. Treating gripping stability as a designed-in property—not as an operator problem—is therefore a quality requirement as much as a productivity one. How to Diagnose and Fix Unstable Gripping Step by Step Work systematically rather than adjusting randomly. Record when the failure occurs, at which station, on which material, and what the sensors report, then move through the five steps below. Most plants find the root cause before step four. 1. Measure the real dynamic load case Start with data, not guesses. Weigh the part, note its material and thickness, and obtain the actual motion profile of the robot, crossbar or seventh axis at the production speed setting. From the profile, calculate the peak acceleration and the resulting inertial force F = m × a at the worst reversal, then add the gravitational component. Compare that value with the holding force the current gripper can deliver. The gap between the two—not the part weight—is the load the tooling must manage; document it for every part number in the family, from 0.6 mm aluminum outer panels to 4 mm AHSS structural blanks. 2. Recalculate clamping force and rebuild the friction margin Use the measured dynamic load to compute the required total normal force: divide the worst-case load by the realistic friction coefficient of the contact pair, then multiply by a safety factor of 2–3. If pads slide on oiled steel, replace smooth polyurethane with a higher-friction compound or add serrated hardened-steel jaws and tungsten carbide pins for heavy structural parts. Place contacts at least 3–5 mm from the trimmed edge, avoid draw beads and class-A surfaces, and distribute gripping points around the center of gravity so acceleration cannot rotate the part. 3. Audit and upgrade the vacuum circuit Check every cup: diameter in the 30–150 mm range, lip condition, and whether it reaches -60 to -80 kPa within the available stroke time at full speed. Verify the Venturi supply pressure of 5–6 bar, filter condition and leak-compensation function. Use several smaller cups with individual check valves instead of one large cup so a single leak cannot release the part, and test the complete circuit on real oily blanks at production speed rather than on clean samples in the workshop. If cycle time is too short for vacuum alone, add mechanical backup for heavy or porous parts. 4. Check geometry, alignment and clearances Inspect the frame for rigidity and the fingers for parallelism with the part surface; a gripper that flexes under load feeds vibration back into the sheet. Confirm that the tooling keeps the recommended 20–50 mm clearance from dies and automation, that sensors are positioned where they reliably see the blank edge, and that all fasteners are torqued. After any crash or tooling change, re-verify the zero point and re-teach the path before production restarts. 5. Add sensing and schedule wear-part replacement Fit in-position sensors—inductive or force-based—so the control system knows the blank is seated before the robot accelerates, and add double-blank thickness detection on the destacker so two stuck sheets never enter the transfer. Track pad, cup and pin wear against documented service life, typically hundreds of thousands to over a million cycles, and replace them on schedule rather than after a drop. Log every intervention; over time the data turns troubleshooting into prevention. Applied together, these five steps convert unstable gripping from an unpredictable production risk into a controlled, measurable process parameter that the maintenance team can monitor and the engineering team can optimize. Frequently Asked Questions Why does the gripper drop parts only at higher line speeds? Inertial force grows with acceleration. At higher speeds the crossbar reverses harder, loading the blank with two to five times its weight. If clamping force was sized from static weight alone, friction reserve disappears at these peaks and the part slips. Recalculate force with real dynamic acceleration and a 2–3 times safety factor. How much clamping force does a sheet metal gripper need? There is no universal value; it depends on part mass, acceleration, friction and contact points. Calculate the maximum dynamic load, divide by the real friction coefficient of the pad-on-blank pair, then multiply by 2–3. A five-kilogram door panel typically needs a few hundred to over a thousand newtons of total normal force. What is the 2–3 times safety factor for clamping force? It is a multiplier applied after computing the theoretical clamping force needed to hold a part. It compensates for oil films, pad wear, vacuum fluctuation, vibration and acceleration peaks. If theory says 200 newtons are required, the gripper should deliver 400–600 in service. Vacuum systems follow the same principle: never rely on theoretical force without margin. Why do vacuum cups lose grip on oily or aluminum blanks? Oil films create channels that let air creep between the cup lip and the sheet, pulling vacuum below the -60 to -80 kPa range. Aluminum, AHSS and formed panels behave similarly because they are never perfectly sealed. Holding force drops exactly when inertial loads are highest. Use larger or multiple cups, matched lip compounds and leak-compensated Venturi generators. How often should gripper pads and vacuum cups be replaced? Service life depends on surface condition, cycle rate and contact pressure. Polyurethane pads and nitrile cup lips typically survive hundreds of thousands to over a million cycles, but wear faster on galvanized or AHSS blanks with sharp edges. Inspect weekly for glazing, cuts or lost elasticity; replace contacts before friction drops. Track intervals per gripper to build predictive maintenance. Can sensors prevent unstable gripping? Sensors cannot add clamping force, but they detect instability before damage occurs. In-position sensors confirm the blank is seated after pick-up, while double-blank detection stops two stuck sheets from entering the die. Vacuum or force switches alarm when holding force falls below a threshold. Combined with correct force sizing, they turn random drops into preventable events. { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "Why does the gripper drop parts only at higher line speeds?", "acceptedAnswer": { "@type": "Answer", "text": "Inertial force grows with acceleration. At higher speeds the crossbar reverses harder, loading the blank with two to five times its weight. If clamping force was sized from static weight alone, friction reserve disappears at these peaks and the part slips. Recalculate force with real dynamic acceleration and a 2–3 times safety factor." } }, { "@type": "Question", "name": "How much clamping force does a sheet metal gripper need?", "acceptedAnswer": { "@type": "Answer", "text": "There is no universal value; it depends on part mass, acceleration, friction and contact points. Calculate the maximum dynamic load, divide by the real friction coefficient of the pad-on-blank pair, then multiply by 2–3. A five-kilogram door panel typically needs a few hundred to over a thousand newtons of total normal force." } }, { "@type": "Question", "name": "What is the 2–3 times safety factor for clamping force?", "acceptedAnswer": { "@type": "Answer", "text": "It is a multiplier applied after computing the theoretical clamping force needed to hold a part. It compensates for oil films, pad wear, vacuum fluctuation, vibration and acceleration peaks. If theory says 200 newtons are required, the gripper should deliver 400–600 in service. Vacuum systems follow the same principle: never rely on theoretical force without margin." } }, { "@type": "Question", "name": "Why do vacuum cups lose grip on oily or aluminum blanks?", "acceptedAnswer": { "@type": "Answer", "text": "Oil films create channels that let air creep between the cup lip and the sheet, pulling vacuum below the -60 to -80 kPa range. Aluminum, AHSS and formed panels behave similarly because they are never perfectly sealed. Holding force drops exactly when inertial loads are highest. Use larger or multiple cups, matched lip compounds and leak-compensated Venturi generators." } }, { "@type": "Question", "name": "How often should gripper pads and vacuum cups be replaced?", "acceptedAnswer": { "@type": "Answer", "text": "Service life depends on surface condition, cycle rate and contact pressure. Polyurethane pads and nitrile cup lips typically survive hundreds of thousands to over a million cycles, but wear faster on galvanized or AHSS blanks with sharp edges. Inspect weekly for glazing, cuts or lost elasticity; replace contacts before friction drops. Track intervals per gripper to build predictive maintenance." } }, { "@type": "Question", "name": "Can sensors prevent unstable gripping?", "acceptedAnswer": { "@type": "Answer", "text": "Sensors cannot add clamping force, but they detect instability before damage occurs. In-position sensors confirm the blank is seated after pick-up, while double-blank detection stops two stuck sheets from entering the die. Vacuum or force switches alarm when holding force falls below a threshold. Combined with correct force sizing, they turn random drops into preventable events." } } ] } Conclusion Unstable gripping at high speed is rarely a mystery once the load case is quantified. Most dropped panels trace back to a short list of correctable causes: clamping force sized without a dynamic safety margin, contaminated or worn contacts, vacuum leakage on oily or porous sheets, and tooling geometry that amplifies vibration. Measure the real acceleration, recalculate the required normal force with a 2–3 times safety factor, verify the vacuum circuit under production conditions, and let sensors watch every pick. These actions turn a random, costly failure into a controlled process parameter. If your team needs help auditing an existing end-of-arm tooling package or specifying a new sheet metal gripper, contact our engineering team with your part drawings and cycle data—we will help you define a solution that holds reliably at full line speed.
