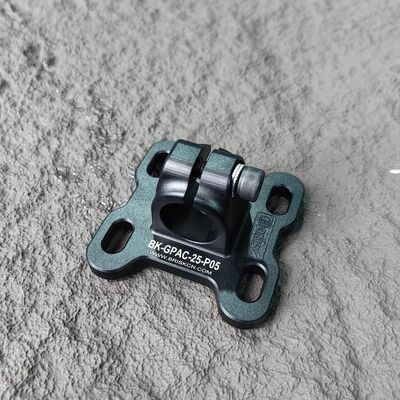

Metal Custom Quick Die Change System Automatic Robotic Pneumatic Tool For EOAT

Modern robot tool changers

Fast change: The tool changers allow for a quick and uncomplicated exchange of tools and grippers. This leads to a significant reduction in downtime and an increase in overall productivity.
High compatibility: The systems are compatible with a wide range of robots and tools, ensuring wide usability in various industrial environments.
Easy to use: places a high importance on user-friendliness. Our systems are designed for ease of use, reducing training time and increasing efficiency.

Introduction to Gripper Pneumatic Quick-Change System

Purpose and Importance

The primary purpose of a pneumatic quick-change system is to automate the tool change process, enabling robots or machines to switch between different grippers or end-effectors quickly and accurately. Traditional manual tool changes can lead to downtime and misalignment, which reduce overall productivity. A pneumatic quick-change system eliminates these issues by providing repeatable positioning, automatic air/electrical connection, and secure locking mechanisms activated by compressed air.

This capability is crucial for multi-product production lines and flexible robotic systems, where different grippers are required to handle varying part geometries or materials. The system supports mass customization, rapid reconfiguration, and Industry 4.0 smart manufacturing goals.

Working Principle

The Gripper Pneumatic Quick-Change System consists of two main components:

1. Master Plate (Robot Side) – Permanently attached to the robot wrist or handling arm.

2. Tool Plate (Gripper Side) – Mounted on the gripper or end-effector to be exchanged.

When a tool change is required, compressed air activates the locking mechanism—typically pneumatic pistons or clamping balls—that engage or disengage the two plates. The system often includes integrated pneumatic and electrical connectors that automatically connect air lines and signal interfaces during attachment. Once locked, the connection is rigid, ensuring high repeatability and precision alignment.

Release is achieved by reversing the air pressure, allowing the robot to detach the current gripper and attach another within seconds.

Key Features

1. Fast, automated tool exchange – Minimizes downtime during production changeovers.

2. High repeatability and precision – Ensures consistent positioning of the tool.

3. Integrated utility connections – Provides pneumatic, electrical, or signal transmission through the interface.

4. Compact and lightweight design – Suitable for robotic applications with space or payload limits.

5. Secure locking mechanism – Maintains strong connection under dynamic motion and load.

Applications

• Automotive manufacturing – Switching between grippers for body panels, fasteners, or welding tools.

• Metal forming and press automation – Changing sheet metal handling tools between press stations.

• Packaging and logistics – Alternating between suction, finger, or magnetic grippers.

• Electronics assembly – Rapidly adapting tools for varied components.

• General robotics – Supporting flexible, multi-purpose robotic systems in smart factories.

Advantages

• Reduces setup and downtime, improving overall productivity.

• Enhances robot versatility by allowing multi-task operations.

• Ensures high accuracy and repeatable alignment after every tool change.

• Provides safe and automated operation with pneumatic locking control.

• Simplifies maintenance and tool replacement processes.
