| Brand Name: | OEM |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, PayPal, Western Union, MoneyGram |
| Supply Ability: | 300 + Piece + per Months |

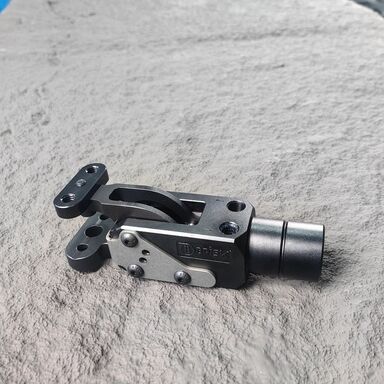

Pneumatic Air Sheet Metal Gripper Operated With Angular Opening
Electric miniature sheet metal grippers for transfer press tooling are run on compressed air and have the ability to pick up, place, hold and release objects while an action is being executed. Modular design could save assembly hours. Long life cycle, best price and flexible industrial assembly make Brisk grippers the best one available. Modular design could save assembly hours.
| Name | Sheet Metal Grippers |
| Application | Robots /Sheet Metal Handling /Automotive Manufacturing/Aerospace/Press Shop Gripping Applications |
| Material | Aluminum Steel |
| Open Angle | 30, 45, 72 |
| Weight | 0.6kg |
| Clamping Force at 5 Bar | 580n |
| Muscle Size | 10~31kg |
| Air Connectors | M5 |
| Air Force | 3 To 6 Bar |
| Control Mode | Continuous Path Control |
| Drive Mode | Pneumatic |
| Application | Stamping |
| Brand | Brisk Or Oem |
| Size | 6 Inches |
| Air Ports | G 1 / 4 |
| Power Source | Compressed Air |
| Product Function | Gripper For Metal Sheet Stamping |
