| Brand Name: | OEM |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, PayPal, Western Union, MoneyGram |
| Supply Ability: | 300 + Piece + per Months |

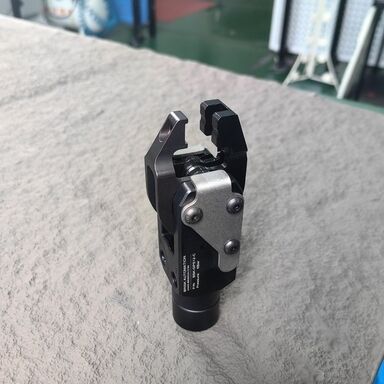

Pneumatic Gripper Clamps
| Name | Sheet Metal Grippers |
| Air Force | 3 to 6 Bar or custom |
| Opening & Closure Time | 0.2 Sec. |
| Clamping Force at 5 Bar | 580n |
| Open Angle | 30, 45, 72 or custom |
| Weight | 0.6kg or custom |
| Muscle Size | 10~31kg or custom |
| Drive Mode | Pneumatic |
| Cycles | 5000000 cycles |
| Material | Aluminum & Steel |
| Cylinder diameter | 25 or custom |
| Air consumption per double stroke | 0,3 dm3 |
| Air connectors | M5 |
| Control Mode | Continuous Path Control |
| Features | Small size/ low weight/ Fast opening and closing action/ High clamping force/ Long life cycle /Roller and cam principle/self-locking at end stop position Add-on component and end position sensing available |
| Application | Gripping, holding, placing, removing and transporting of metal sheets and other parts, mainly in jigs, transfer presses and handling systems. |
| Key areas of application | Automotive manufacturing, sheet processing industry, jig and general mechanical engineering |
Small size, low weight
Fast opening and closing action
High clamping force
Long life cycle
Roller and cam principle, self-locking at end stop position
Add-on component and end position sensing available
Cylinder diameter 25
Air consumption per double stroke: 0,3 dm3
Air connectors M5
Application:
Gripping, holding, placing, removing and transporting of metal sheets and other parts, mainly in jigs, transfer presses and handling systems.
Key areas of application:
Automotive manufacturing, sheet processing industry, jig and general mechanical engineering.
