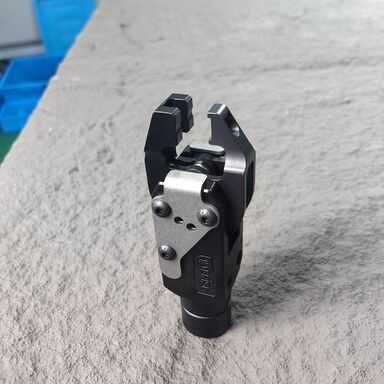

High Clamping Force Sheet Metal Gripper Load Capacity 3000kg Grip Range

Sheet Metal Gripper Load Capacity 3000 kg Grip Range

Introduction to Sheet Metal Gripper

Sheet metal grippers represent the universal and optimal gripping solution for both press shop operations and robotic part handling applications. Featuring a lightweight, high-efficiency and highly adaptable design, they significantly elevate press tending productivity and facilitate high-speed material transfer in stamping press applications. Specially enclosed gripper units are engineered to perform reliably in severe welding environments, while the proprietary internal mechanism ensures the grippers maintain a closed state and eliminate the risk of unintended opening upon pneumatic interruption. All gripper models integrate a lightweight and compact form factor, modular opening configurations, a comprehensive selection of grip styles and multi-point contact mechanisms, complemented by facile in-field jaw reconfiguration, adjustable opening angles, multipoint sensing capabilities and minimized field maintenance demands. Moreover, the hot metal variants of the pneumatic gripper system furnish a versatile and heavy-duty gripping solution tailored for extreme high-temperature applications. Engineered to manage hot metal at temperatures up to 1650 °F (900 °C), this configuration is perfectly suited for the handling of hot sheet metal, plastics and thermoforming processes. Supplied with both standard and flanged claws compatible with a wide spectrum of material thicknesses, the hot metal gripper can be flexibly configured to address multifaceted industrial application challenges.

Specification

Key Features

Small size, low weight
Fast opening and closing action
High clamping force
Long life cycle
Roller and cam principle, self-locking at end stop position
Add-on component and end position sensing available
Cylinder diameter 25
Air consumption per double stroke: 0,3 dm3
Air connectors M5

Applications

Application:

Gripping, holding, placing, removing and transporting of metal sheets and other parts, mainly in jigs, transfer presses and handling systems.

Key areas of application:

Automotive manufacturing, sheet processing industry, jig and general mechanical engineering.
