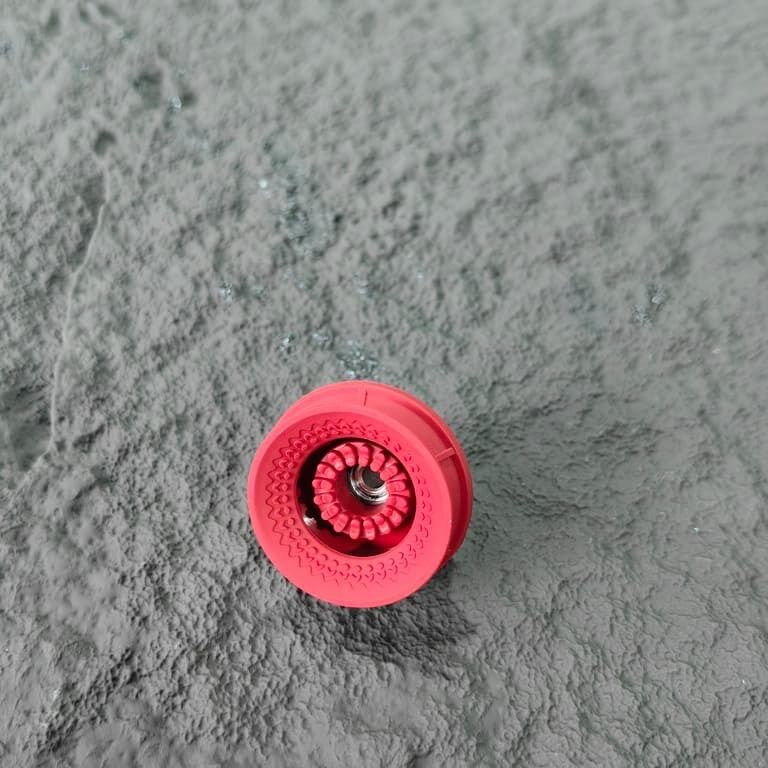

Industrial Heavy Duty Silicone Rubber Vacuum Suction Cup Automation Robotic Gripper

Industrial Heavy Duty Silicone Rubber Vacuum Suction Cup Automation Robotic Gripper

Introduction to Vacuum Gripper

This supplier is both a manufacturer and trader, exporting mainly to the United States, Mexico, and Thailand. They offer full customization, design customization, and sample customization services, hold product certifications, and have a positive review rate of 97.1%.

 Specification

Working Principle

Vacuum grippers function by connecting one or more suction cups to a vacuum generator or pump. When the vacuum is activated, air is evacuated from the space between the suction cup and the workpiece surface, creating a pressure differential that pulls the object toward the cup and holds it securely.

There are two main types of vacuum generation methods:

1. Venturi-based vacuum generators – Use compressed air to create suction through the Venturi effect (commonly used for lightweight, fast operations).

2. Vacuum pumps – Electrically driven pumps that provide continuous vacuum flow for heavy-duty or multi-cup systems.

The grip is released by venting air into the suction cup, equalizing pressure and allowing the part to be dropped or placed precisely.

Key Features

1. Non-damaging grip – Ideal for delicate or polished materials like sheet metal, glass, or coated parts.

2. Fast and flexible operation – Suitable for high-speed automation and variable object shapes.

3. Lightweight construction – Minimizes load on robotic arms and actuators.

4. Easy maintenance and integration – Simple structure with few moving parts.

5. Customizable suction configurations – Can include multiple cups and adjustable mounts.

Applications

• Sheet metal handling – Transferring steel or aluminum sheets between press stages.

• Automotive manufacturing – Moving body panels, doors, and roof components.

• Electronics assembly – Handling glass panels, circuit boards, or casings.

• Packaging and logistics – Picking boxes, bags, and flat packages.

• Aerospace and composites – Lifting lightweight panels and molded structures.

Advantages

• Provides clean, non-contact handling with no surface damage.

• Allows fast pick-and-place operations, improving productivity.

• Handles varied materials and surface geometries.

• Offers simple design and low maintenance costs.

• Easily integrates with robotic and automated systems for flexible manufacturing.
