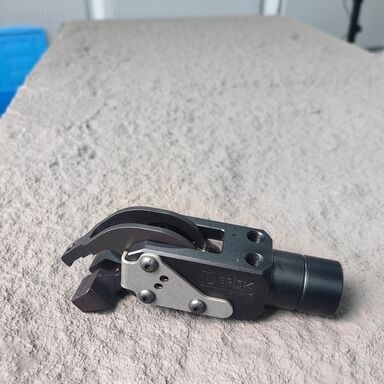

Press Shop Gripping Pneumatic Gripper Aluminum Steel For High Speed Automation

Pneumatic Grippers

 Advantages of Pneumatic Grippers

Simplicity and Reliability: Pneumatic grippers are straightforward in design, making them easy to maintain and repair. The absence of complex electronics reduces the likelihood of malfunction, leading to higher reliability.
Cost-Effectiveness: Compared to electric and hydraulic grippers, pneumatic grippers are more affordable both in terms of initial investment and operating costs. The use of compressed air, a readily available resource, further reduces operational expenses.
Lightweight and Compact: These grippers are typically lightweight and compact, making them ideal for integration into robotic systems where space and weight are critical factors.
Fast and Responsive: Pneumatic grippers offer quick response times, making them suitable for high-speed automation processes. Their ability to exert significant force in a short time frame is a key advantage in applications requiring rapid and precise movements.

Speicification

Key Features

1. High Precision and Repeatability – Ensures consistent placement and alignment of parts.

2. Strong and Reliable Grip – Maintains firm holding force during high-speed press operations.

3. Compact and Lightweight Design – Suitable for robotic or multi-axis transfer systems.

4. Durable Construction – Typically made from hardened steel or aluminum alloys for long service life.

5. Customizable Gripping Jaws – Designed according to the shape, thickness, and material of the workpiece.

Working Principle

Press grippers commonly operate using pneumatic, mechanical, or servo-controlled systems:

• Pneumatic grippers use compressed air to open and close gripping fingers.

• Mechanical grippers rely on levers or cams synchronized with the press cycle.

• Servo grippers allow precise force and position control for delicate operations.

The gripping mechanism is synchronized with the press stroke, ensuring the gripper picks up the workpiece after one forming step and transfers it to the next die station smoothly and safely.

Applications

• Automotive manufacturing – Handling car body panels, brackets, and structural components.

• Appliance and electronics industries – Transferring stamped sheet parts.

• Aerospace and metal fabrication – Moving precision-formed components.

• Progressive and transfer press lines – Automating multi-stage stamping operations.

Advantages

• Improves efficiency and production speed in press operations.

• Reduces manual handling and enhances workplace safety.

• Minimizes scratches, deformation, and damage to materials.

• Enables high consistency and repeatability in part positioning.

• Compatible with fully automated robotic press systems.
