| Brand Name: | OEM |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, PayPal, Western Union, MoneyGram |
| Supply Ability: | 300 + Piece + per Months |

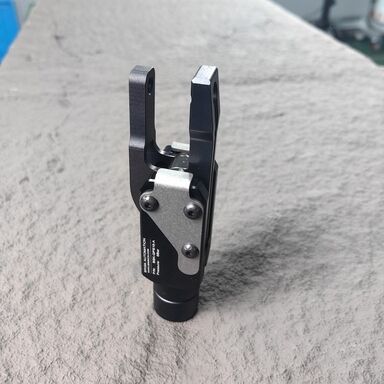

Transfer Tooling Gripper
Our high performing range of Grippers have the best holding force in their class and the fastest actuation times, beating any other clamp or gripper in the market.
The high performance of the Grippers combined with their hardened steel chassis and specially designed sensors for harsh press environments will increase your uptime and extend tooling life.
| Name | Transfer Tooling Gripper |
| Application | Robots /Sheet Metal Handling /Automotive Manufacturing/Aerospace/Press Shop Gripping Applications |
| Material | Aluminum Steel |
| Weight | 0.45 Kg |
| Clamping Force | 620 N (at 5 Bar) |
| Control Mode | Continuous Path Control |
| Drive Mode | Pneumatic |
| Brand | Brisk Or Oem |
| Air Ports | G 1 / 4 |
| Power Source | Compressed Air |
| Product Function | Gripper For Metal Sheet Stamping |
| Operating Pressure | Max. 6.0 Bar |
High Precision and Repeatability – Ensures accurate positioning of each part during transfer.
Lightweight and Durable Construction – Made from high-strength aluminum or carbon fiber to reduce inertia while maintaining rigidity.
Adjustable Gripping Mechanism – Allows customization based on part geometry, thickness, and material.
Quick-Change Design – Enables fast retooling for different products or die configurations.
Pneumatic or Servo Operation – Offers smooth, reliable, and controlled gripping action.
Transfer tooling grippers generally operate through pneumatic, mechanical, or servo-driven systems.
In pneumatic grippers, compressed air drives the opening and closing of jaws.
Mechanical grippers utilize linkages or cams synchronized with press motion.
Servo grippers allow precise force and position control, suitable for delicate or high-precision applications.
The gripper is mounted on a transfer arm or robot end-effector and works in harmony with the press stroke. It picks up the workpiece after one operation, transfers it to the next station, and releases it at the exact position required for the subsequent process.
