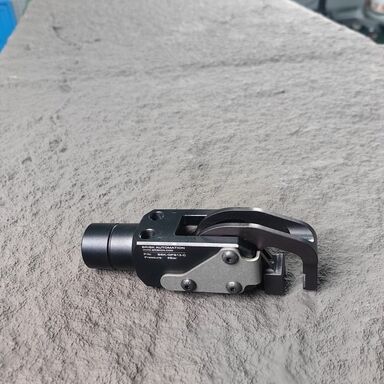

Transfer Tooling Gripper
Chisel and Shovel Jaw
Low profile chisel jaws can be used in applications in dies with low or tight clearances
14 degree lower chisel jaw allows for the motion or shake of the material during transfer.
Variations in Top and Bottom Jaw Angles (With Teeth or W/O Teeth).
In-Pad, Double Blank and Part Present Sensors available.
Pad width Fixed, Various Thickness available
Flange Jaw
Gripper is mounted 90 degree to the gantry tooling
Flange jaw allows gripper to reach around the formed flange edge of the blank
Variations in Top Jaw Angle..
In Pad or Part Present Sensor Available.
Choices of Pad widths and material thicknesses available.
| Name | Transfer Tooling Gripper |
| Application | Robots /Sheet Metal Handling /Automotive Manufacturing/Aerospace/Press Shop Gripping Applications |
| Material | Aluminum Steel |
| Weight | 0.45 Kg |
| Clamping Force | 620 N (at 5 Bar) |
| Control Mode | Continuous Path Control |
| Drive Mode | Pneumatic |
| Brand | Brisk Or Oem |
| Air Ports | G 1 / 4 |
| Power Source | Compressed Air |
| Product Function | Gripper For Metal Sheet Stamping |
| Operating Pressure | Max. 6.0 Bar |
High Precision and Repeatability – Ensures accurate positioning of each part during transfer.
Lightweight and Durable Construction – Made from high-strength aluminum or carbon fiber to reduce inertia while maintaining rigidity.
Adjustable Gripping Mechanism – Allows customization based on part geometry, thickness, and material.
Quick-Change Design – Enables fast retooling for different products or die configurations.
Pneumatic or Servo Operation – Offers smooth, reliable, and controlled gripping action.
Transfer tooling grippers generally operate through pneumatic, mechanical, or servo-driven systems.
In pneumatic grippers, compressed air drives the opening and closing of jaws.
Mechanical grippers utilize linkages or cams synchronized with press motion.
Servo grippers allow precise force and position control, suitable for delicate or high-precision applications.
The gripper is mounted on a transfer arm or robot end-effector and works in harmony with the press stroke. It picks up the workpiece after one operation, transfers it to the next station, and releases it at the exact position required for the subsequent process.
