| Brand Name: | OEM |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, PayPal, Western Union, MoneyGram |
| Supply Ability: | 300 + Piece + per Months |

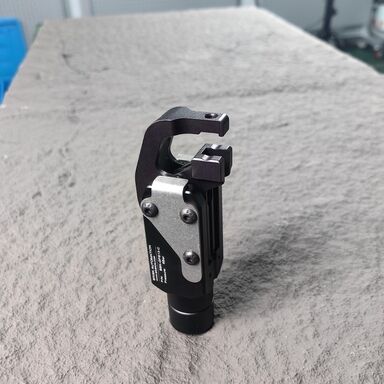

Transfer Tooling Gripper
End-of-arm tools and gripper systems
They are at the heart of robotic automation: End-of-arm tools. We have solved the most varied tasks across industries with them: gripping, checking, installing and much more. As an industry partner with many years of experience, we are very familiar with the requirements of modern EOATs, whether in mechanical engineering, the automotive and supplier industries, foundries or in the electronics, plastics or the consumer goods sectors. gripper systems allow us to equip any make of robot optimally and significantly increase the functionality and efficiency of your robots. The extensive expert solutions of our system technology department, with their experienced team of project engineers, designers and manufacturers, has been valued by our customers for many years. Our systems are the result of a close collaboration with end customers and integrators built on trust. it has specially tailored production and assembly areas with a high degree of vertical integration. This means that we can guarantee flexible, quick implementation of your projects at any time.
| Name | Transfer Tooling Gripper |
| Application | Robots /Sheet Metal Handling /Automotive Manufacturing/Aerospace/Press Shop Gripping Applications |
| Material | Aluminum Steel |
| Weight | 0.45 Kg |
| Clamping Force | 620 N (at 5 Bar) |
| Control Mode | Continuous Path Control |
| Drive Mode | Pneumatic |
| Brand | Brisk Or Oem |
| Air Ports | G 1 / 4 |
| Power Source | Compressed Air |
| Product Function | Gripper For Metal Sheet Stamping |
| Operating Pressure | Max. 6.0 Bar |
High Precision and Repeatability – Ensures accurate positioning of each part during transfer.
Lightweight and Durable Construction – Made from high-strength aluminum or carbon fiber to reduce inertia while maintaining rigidity.
Adjustable Gripping Mechanism – Allows customization based on part geometry, thickness, and material.
Quick-Change Design – Enables fast retooling for different products or die configurations.
Pneumatic or Servo Operation – Offers smooth, reliable, and controlled gripping action.
Transfer tooling grippers generally operate through pneumatic, mechanical, or servo-driven systems.
In pneumatic grippers, compressed air drives the opening and closing of jaws.
Mechanical grippers utilize linkages or cams synchronized with press motion.
Servo grippers allow precise force and position control, suitable for delicate or high-precision applications.
The gripper is mounted on a transfer arm or robot end-effector and works in harmony with the press stroke. It picks up the workpiece after one operation, transfers it to the next station, and releases it at the exact position required for the subsequent process.
