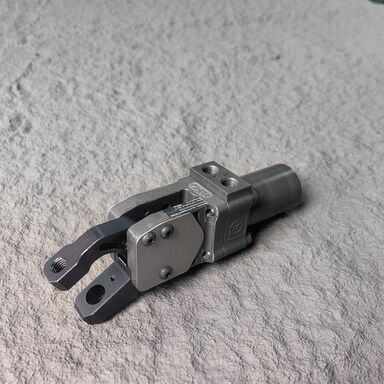

Continuous Path Control Pneumatic Pincers For Metal Sheet Stamping

Pneumatic Pincer

 Innovations in Pneumatic Grippers

Smart Grippers: Recent advancements have led to the development of smart pneumatic grippers equipped with sensors and IoT capabilities. These grippers can monitor and adjust their grip in real-time, enhancing accuracy and reducing the risk of errors.
Adaptive Grippers: Adaptive pneumatic grippers are designed to adjust their gripping force and shape according to the object being handled. This innovation allows robots to handle a wider range of objects without requiring manual adjustments.
Energy-Efficient Designs: Newer pneumatic grippers are being designed with energy efficiency in mind, utilizing less compressed air while maintaining performance. This not only reduces operating costs but also contributes to sustainability efforts in industrial processes.

Speicification

Key Features

1. High Precision and Repeatability – Ensures consistent placement and alignment of parts.

2. Strong and Reliable Grip – Maintains firm holding force during high-speed press operations.

3. Compact and Lightweight Design – Suitable for robotic or multi-axis transfer systems.

4. Durable Construction – Typically made from hardened steel or aluminum alloys for long service life.

5. Customizable Gripping Jaws – Designed according to the shape, thickness, and material of the workpiece.

Working Principle

Press grippers commonly operate using pneumatic, mechanical, or servo-controlled systems:

• Pneumatic grippers use compressed air to open and close gripping fingers.

• Mechanical grippers rely on levers or cams synchronized with the press cycle.

• Servo grippers allow precise force and position control for delicate operations.

The gripping mechanism is synchronized with the press stroke, ensuring the gripper picks up the workpiece after one forming step and transfers it to the next die station smoothly and safely.

Applications

• Automotive manufacturing – Handling car body panels, brackets, and structural components.

• Appliance and electronics industries – Transferring stamped sheet parts.

• Aerospace and metal fabrication – Moving precision-formed components.

• Progressive and transfer press lines – Automating multi-stage stamping operations.

Advantages

• Improves efficiency and production speed in press operations.

• Reduces manual handling and enhances workplace safety.

• Minimizes scratches, deformation, and damage to materials.

• Enables high consistency and repeatability in part positioning.

• Compatible with fully automated robotic press systems.
